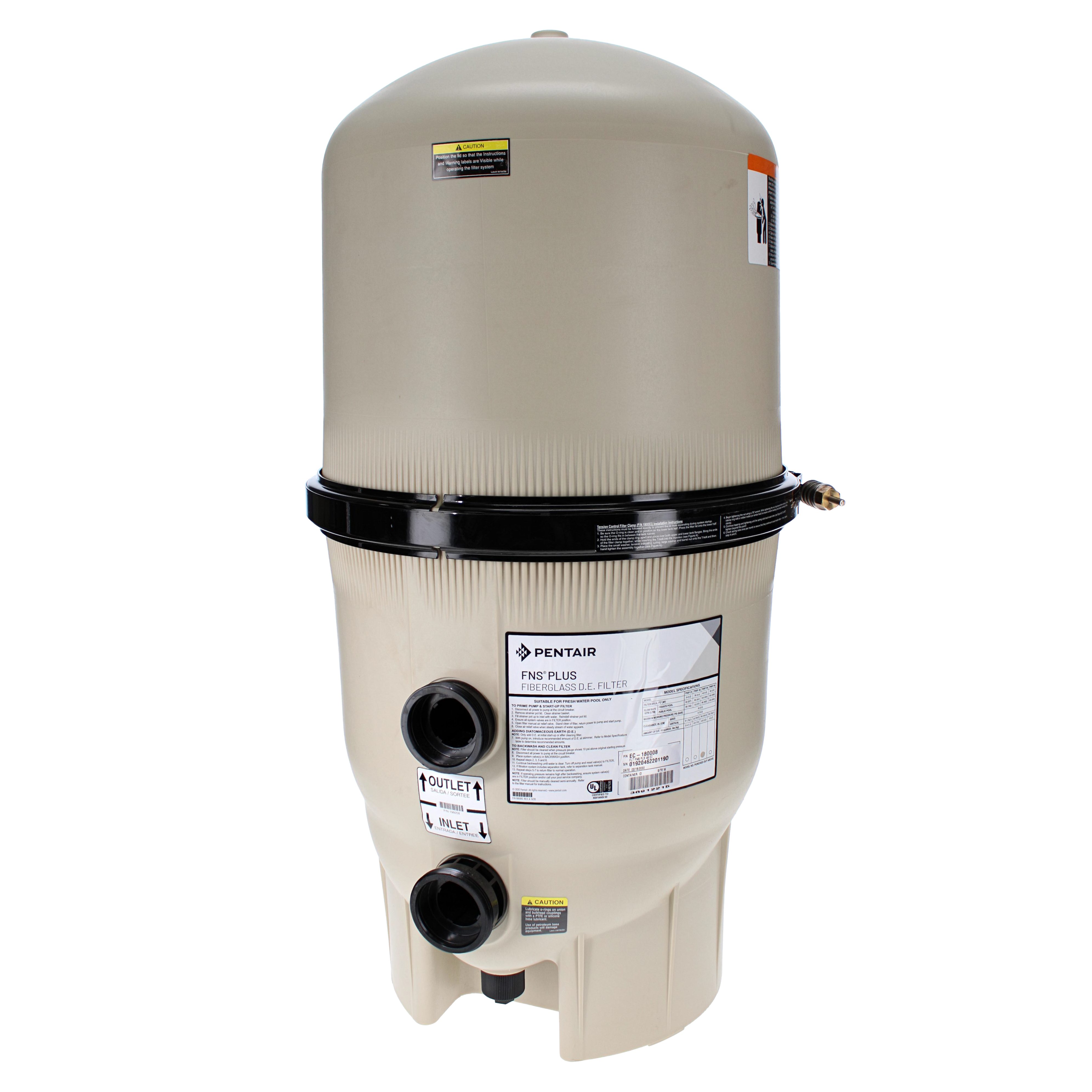

Pentair FNS Plus 48 Sq. Ft. DE Pool Filter - EC-180008
✓ Fast, Free Shipping On Orders Over $100
✓ Sales Tax Only In CA
✓ Full Manufacturer Warranty
✓ Need Help Before Ordering? Give us a call
(866) 689-0086
The Pentair FNS Plus 48 Sq. Ft. DE Pool Filter provides high-capacity filtration for residential in-ground pool systems. Model EC-180008 combines a 48-square-foot grid assembly with a corrosion-resistant, fiberglass-reinforced polypropylene tank and a rated flow of 96 GPM.
Key Features
- 48 sq. ft. effective filtration area
- 96 GPM rated flow based on 2 GPM per square foot
- Fiberglass-reinforced polypropylene tank for strength and corrosion resistance
- Integrated continuous high-flow internal air relief
- Convenient 1-inch drain for efficient cleanout and complete draining
- 2-inch plumbing connections support high-flow pool systems
Specifications
- Manufacturer: Pentair
- Model: FNSP48
- Manufacturer Part Number: EC-180008
- Filter Type: Diatomaceous earth (DE)
- Filtration Area: 48 sq. ft.
- Rated Flow: 96 GPM
- 8-, 10-, and 12-Hour Turnover Capacity: 46,080 / 57,600 / 69,120 gallons
- Required DE Charge: 4.8 lb
- Maximum Continuous Operating Pressure: 50 PSI
- Maximum Pool or Spa Water Temperature: 104 degrees F
- Listed Shipping Weight: 76 lb
Before Ordering
Confirm the required filtration area, system flow, available equipment-pad space, and plumbing configuration before ordering. The control valve and DE filter media are sold separately. Installation must follow Pentair instructions and applicable local codes.
