Premium Inverter Heating and Cooling with Exceptionally Quiet Operation

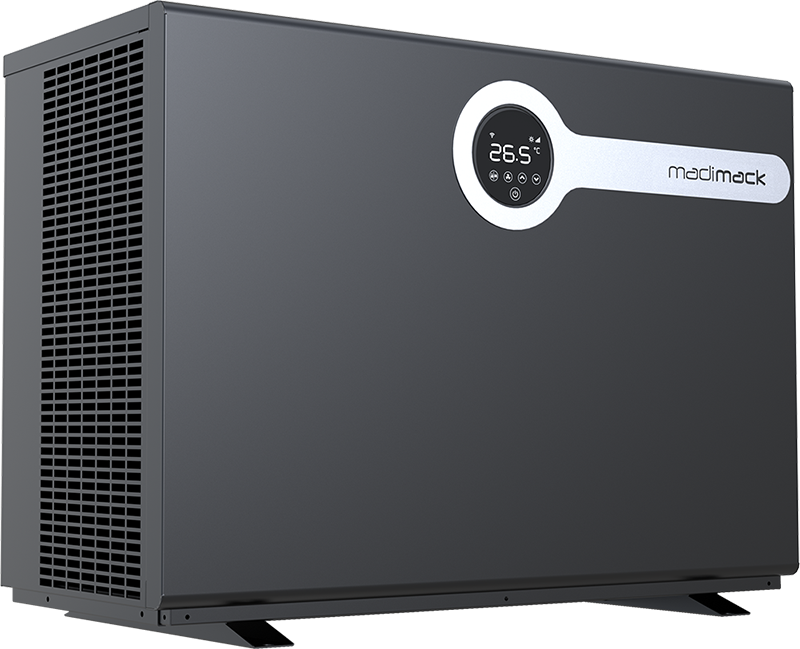

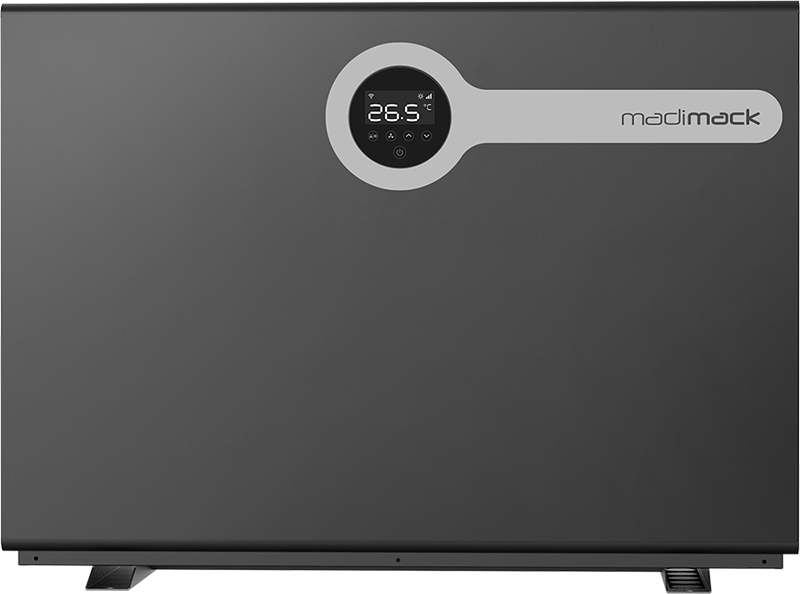

The Madimack InverELITE V2 is a full-inverter pool heat pump designed for efficient heating and cooling, low-temperature operation, and exceptionally quiet performance. Its compressor and fan automatically adjust operating speed to match current demand, providing full output during initial heating before reducing capacity to maintain the selected water temperature efficiently.

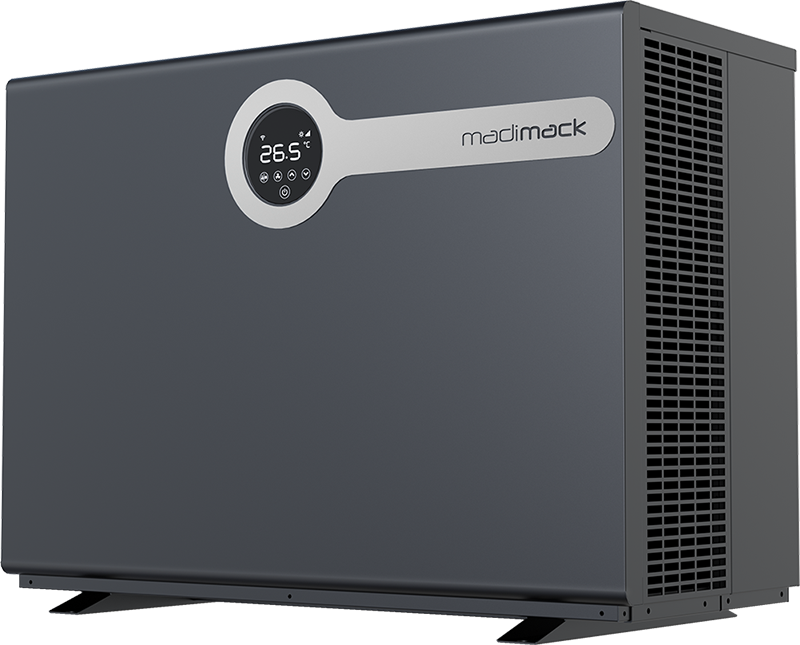

The backward-airflow system draws air through both sides of the unit and directs exhaust from the rear. This design is paired with a weather-, UV-, and corrosion-resistant cabinet, twin-rotary compressor, electronic expansion valve, twisted titanium heat exchanger, and built-in Wi-Fi control.
Key Features
• Available in 84,000 and 116,000 BTU model classes
• Full stepless DC inverter compressor
• Heating, cooling, and automatic operation
• Built-in Wi-Fi and smart-app control
• Backward-airflow system
• Weather-, UV-, and corrosion-resistant casing
• Boost and Silence operating modes
• Automatic reverse-cycle defrosting
• Soft-start operation
• Twisted titanium heat exchanger
• Built-in water-flow switch
• Compatible with voltage-free external automation controls
• Operates in ambient temperatures down to 5°F
Operating Modes
Boost Mode: Operates from 20% to 100% capacity for faster initial heating.
Silence Mode: Operates from 20% to 80% capacity with sound levels approximately 3 dB(A) below Boost mode.
Heating Performance
InverELITE 84,000
• Model Number: ISAC840
• SKU: INVELITE084
• Heating Capacity at 80°F Air / 80°F Water / 80% RH: 76,000 BTU
• COP at 80°F Air / 80°F Water / 80% RH: 5.6
• Heating Capacity at 80°F Air / 80°F Water / 63% RH: 71,000 BTU
• COP at 80°F Air / 80°F Water / 63% RH: 5.3
• Heating Capacity at 50°F Air / 80°F Water / 63% RH: 30,000 BTU
• COP at 50°F Air / 80°F Water / 63% RH: 4.7
InverELITE 116,000
• Model Number: ISAC1100
• SKU: INVELITE1100
• Heating Capacity at 80°F Air / 80°F Water / 80% RH: 105,000 BTU
• COP at 80°F Air / 80°F Water / 80% RH: 5.6
• Heating Capacity at 80°F Air / 80°F Water / 63% RH: 101,000 BTU
• COP at 80°F Air / 80°F Water / 63% RH: 5.4
• Heating Capacity at 50°F Air / 80°F Water / 63% RH: 47,000 BTU
• COP at 50°F Air / 80°F Water / 63% RH: 4.7
The 84,000 and 116,000 designations identify each model class. Actual heating output changes with air temperature, water temperature, and humidity as shown above.
Technical Specifications
INVELITE084
• Power Supply: 208–230V, single phase, 60 Hz
• Electrical Connection: Hardwired, 3 × 10 AWG
• Minimum Circuit Ampacity: 25A
• Maximum Overcurrent Protection: 35A
• Rated Input Power at 80°F Air: 0.71–3.91 kW
• Rated Input Current at 80°F Air: 3.09–17.0A
• Maximum Input Current: 23A
• Sound Level at 10 Feet: 30.8–44.5 dB(A)
• Sound Level at 3 Feet: 40.3–54.0 dB(A)
• Recommended Water Flow: 21.9–30.6 GPM ±20%
• Water Pressure Drop: 5.6 kPa
• Maximum Air Volume: 6,100 m³/h
• Unit Dimensions: 41.7 × 16.9 × 37.7 inches
• Net Weight: 211.6 pounds
• Shipping Dimensions: 44.1 × 18.4 × 38.8 inches
• Shipping Weight: 273.4 pounds
INVELITE1100
• Power Supply: 208–230V, single phase, 60 Hz
• Electrical Connection: Hardwired, 3 × 8 AWG
• Minimum Circuit Ampacity: 40A
• Maximum Overcurrent Protection: 60A
• Rated Input Power at 80°F Air: 0.96–5.31 kW
• Rated Input Current at 80°F Air: 4.17–23.09A
• Maximum Input Current: 30A
• Sound Level at 10 Feet: 32.0–45.4 dB(A)
• Sound Level at 3 Feet: 41.5–54.9 dB(A)
• Recommended Water Flow: 35.1–44.1 GPM ±20%
• Water Pressure Drop: 10.6 kPa
• Maximum Air Volume: 7,050 m³/h
• Unit Dimensions: 51.7 × 19.3 × 37.7 inches
• Net Weight: 275.6 pounds
• Shipping Dimensions: 53.9 × 21.5 × 39.0 inches
• Shipping Weight: 341.7 pounds
Shared Specifications
• Water Connection: 2 inches
• Operating Air Temperature: 5°F–109°F
• Heating Setpoint Range: 64°F–104°F
• Cooling Setpoint Range: 41°F–86°F
• Automatic Mode Setpoint Range: 41°F–104°F
• Heat Exchanger: Titanium in PVC
• Refrigerant: R410A
Published specifications are provided for reference. Confirm final electrical and equipment data using the nameplate on the delivered unit.
Installation Requirements
The InverELITE V2 must be installed and commissioned by a qualified professional in accordance with Madimack’s installation manual and applicable codes. It requires an outdoor, well-ventilated location with the manufacturer’s specified clearances around the air inlets and rear discharge.
The unit must be mounted securely to a solid concrete foundation or suitable corrosion-resistant equipment bracket. Electrical service, hard-pipe plumbing, water flow, bypass adjustment, condensate drainage, and equipment placement must be confirmed for the selected model.

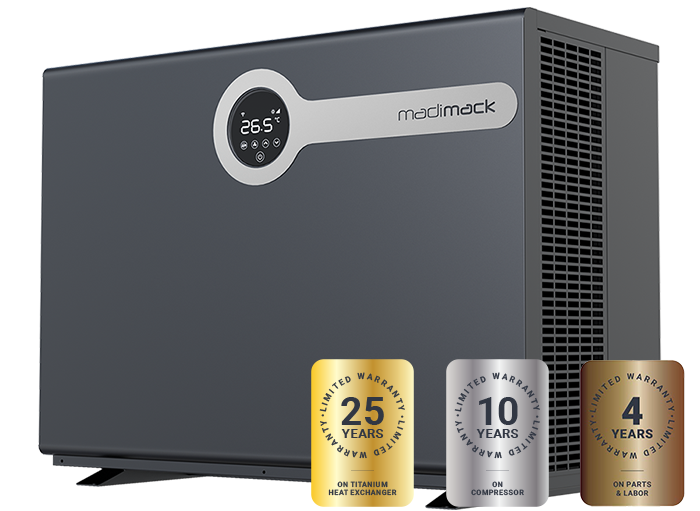

Manufacturer Warranty
• 25-year titanium heat-exchanger warranty
• 10-year compressor warranty
• 4-year parts warranty
• 4-year on-site labor warranty
Warranty registration and all current manufacturer eligibility, installation, and coverage requirements apply.
