Hammer Head Service Unit | Model SERVICE-30
Keep big pools clean in a single pass. The Hammer Head SERVICE-30 is a self-contained, commercial-grade vacuum system that lets your crew roll up, plug in, and start removing heavy debris fast—without relying on the facility’s pump room. Pair the 30" vacuum head with the high-flow power unit and oversized debris bag to collect leaves, sand, and fine sediment before they hit the filters. The balanced cart design, large wheels, and quick-connect hose/pole fittings make deck moves simple and setup nearly instant, so you spend time cleaning—not fiddling with gear.
Built for daily route work, the SERVICE-30 features rugged construction, corrosion-resistant hardware, and serviceable components that hold up to hotel, HOA, and aquatic-center schedules. Operators get smooth handling on long pulls, confident control around drains and lane lines, and reliable suction that leaves floors polished and guest-ready. It’s the go-to solution when you need speed, portability, and consistent results on large bodies of water.
Key highlights
-
30" commercial vacuum head + high-flow power unit for rapid debris removal
-
Independent system—no dependence on pool circulation or pump room
-
Quick setup with standard pole and commercial hose compatibility
-
Heavy-duty cart with large wheels for easy deck transport and storage
-
Oversized debris bag captures leaves, sand, and fine sediment
-
Serviceable, route-ready build for hotels, HOAs, aquatic centers, and competition pools
NOT INCLUDED:
-
12 VOLT DEEP CYCLE MARINE BATTERY
-
BATTERY CHARGER
-
STANDARD POOL POLE
SPECIFICATIONS:
-

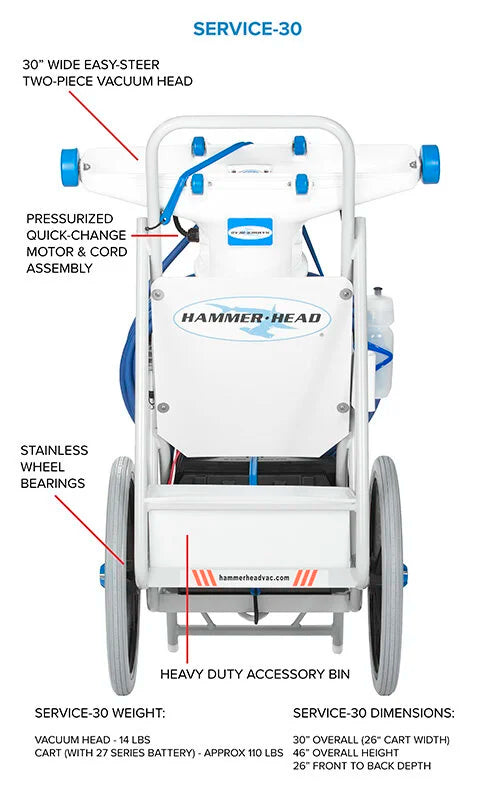

21" OR 30" INJECTION MOLDED VACUUM HEAD
-

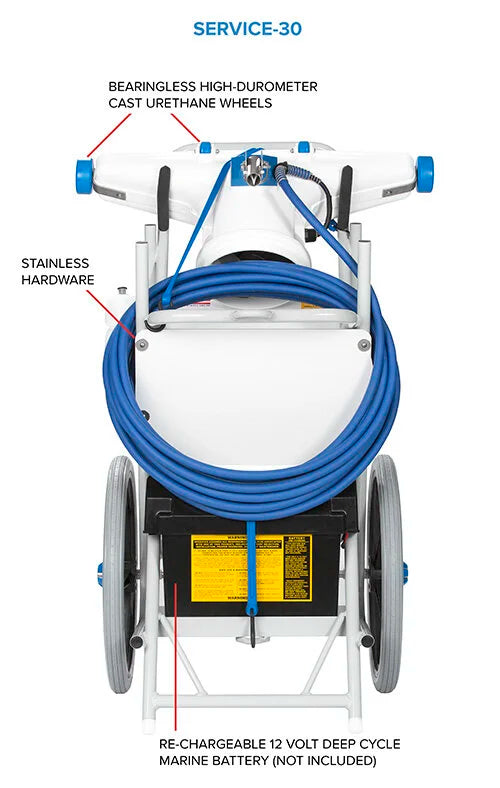

NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS
-
STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Service-30)
-
ALL STAINLESS HARDWARE
-
FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).
-

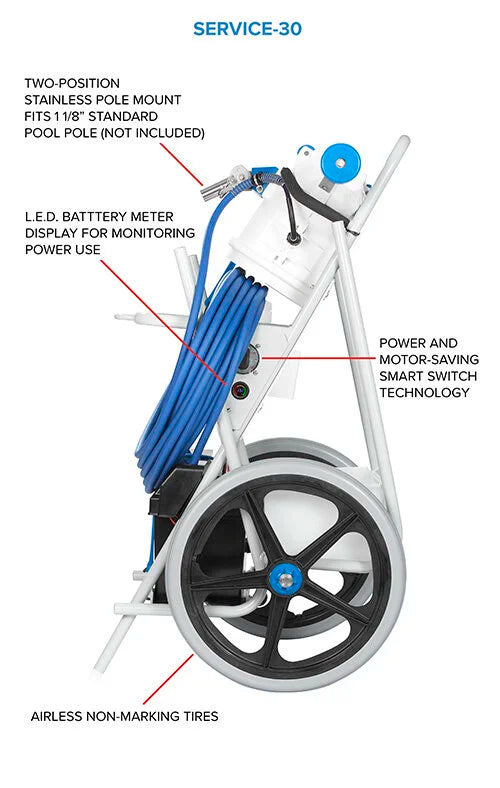

L.E.D. battery voltage meter
-
SEALED AND PRESSURE TESTED MOTOR
-
40FT OR 60FT FLOATING POWER CORD
-
TWO BLADE PROPELLER
-

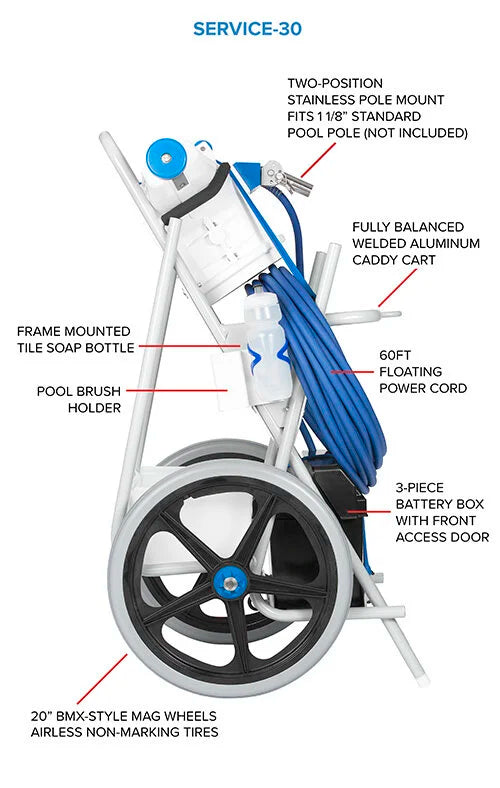

WELDED ALUMINUM CADDY CART
-
20" MAG BMX-STYLE CART WHEELS
-
NON-MARKING SOLID TIRES
-
STAINLESS WHEEL BEARINGS
-

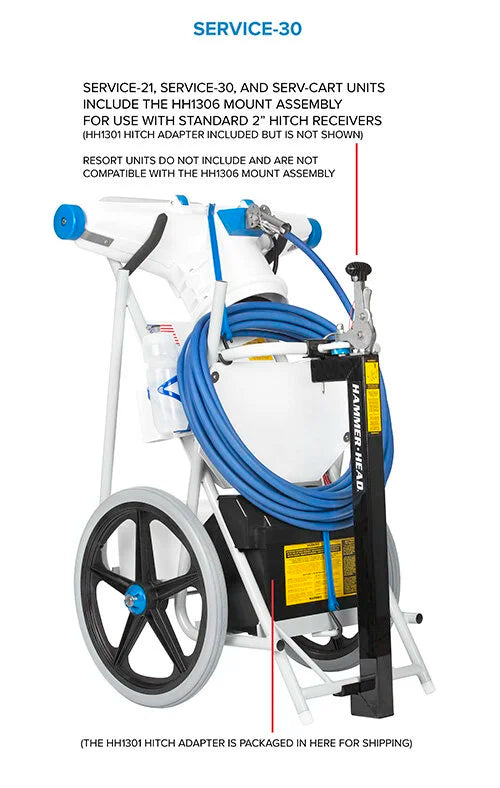

VEHICLE MOUNT ASSEMBLY (HH1306) **Your vehicle must be equipped with a standard 2” hitch receiver.
-
TWO DEBRIS BAGS (HH1506 AND HH1508)
-
SERVICE-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 155 LBS
(approximate) -
SERVICE-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 157 LBS
(approximate) -
21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
-
30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS
SHIPPING DIMENSIONS:
-
PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)
-
SHIPPING WEIGHT: 110lbs
-
FREIGHT CLASS: 250
