Hammer Head Service Unit | Model SERVICE-21-60
Clean faster in tight spaces and on busy routes. The Hammer Head SERVICE-21-60 pairs the nimble 21" vacuum head with a route-ready setup (commonly bundled with a 60' service hose) so you can roll to the deck, connect your pole, and start pulling leaves, sand, and fine silt—all without relying on the pool’s circulation system. The compact head tracks straight on long pulls, pivots neatly around ladders and drains, and hugs corners that larger heads miss, making it ideal for hotels, HOAs, spas, and intricate pool layouts.
Built for daily professional use, the Service Unit’s high-flow power, oversized debris bag, and rugged cart hardware deliver quick turnarounds and simple maintenance. Large wheels handle uneven decks and ramps, quick-connect fittings speed setup, and serviceable wear parts keep uptime high. The result is consistent, guest-ready floors with less strain on the facility’s filtration—and more stops completed per day.
Key highlights
-
21" commercial vacuum head for precise maneuvering on tight decks and spas
-
Self-contained system—effective cleaning without pump-room dependence
-
Route-ready configuration (commonly paired with 60' hose) for quick deployments
-
High-flow performance + oversized debris bag for leaves, sand, and fine sediment
-
Heavy-duty cart with large wheels; quick-connects for fast setup and breakdown
-
Durable, serviceable build for hotels, HOAs, aquatic centers, and busy service routes
NOT INCLUDED:
-
12 VOLT DEEP CYCLE MARINE BATTERY
-
BATTERY CHARGER
-
STANDARD POOL POLE
SPECIFICATIONS:
-

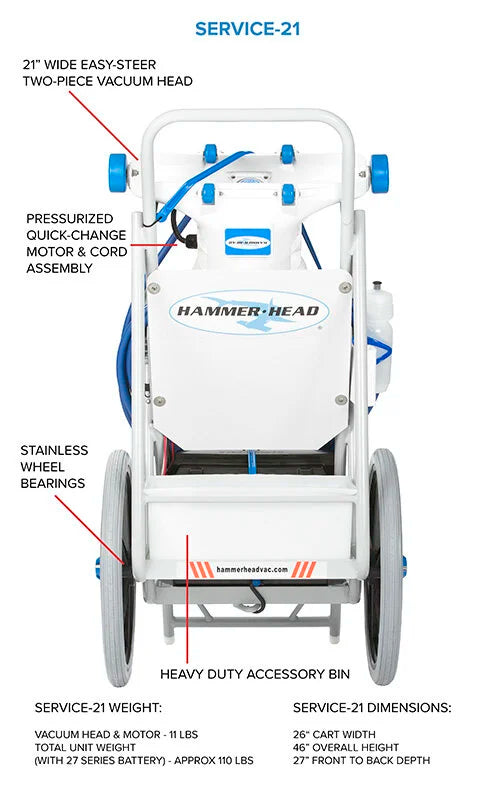

21" INJECTION MOLDED VACUUM HEAD
-

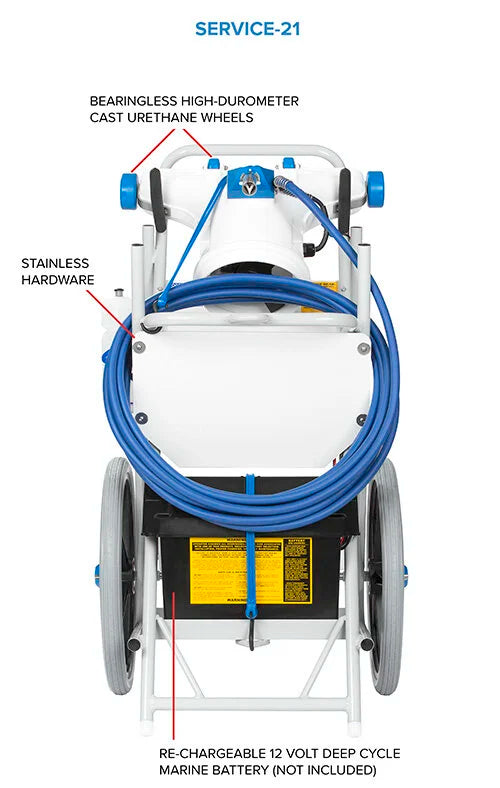

NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS
-

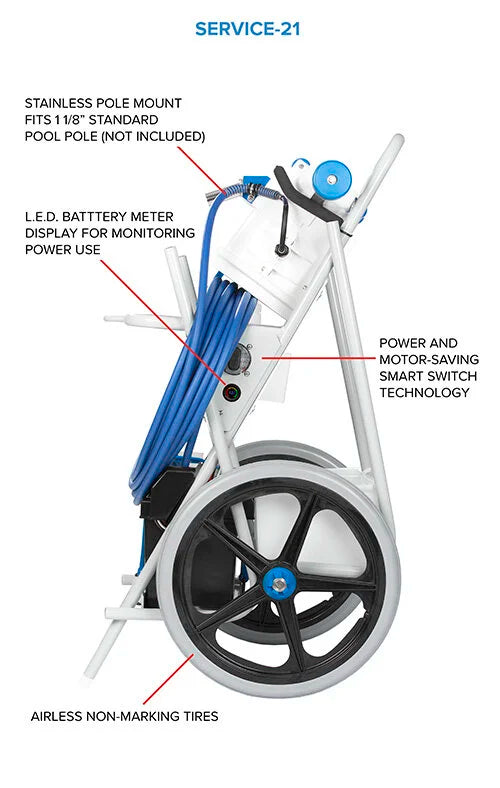

STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Service-30)
-
ALL STAINLESS HARDWARE
-
FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).
-
L.E.D. battery voltage meter
-
SEALED AND PRESSURE TESTED MOTOR
-
40FT OR 60FT FLOATING POWER CORD
-
TWO BLADE PROPELLER
-

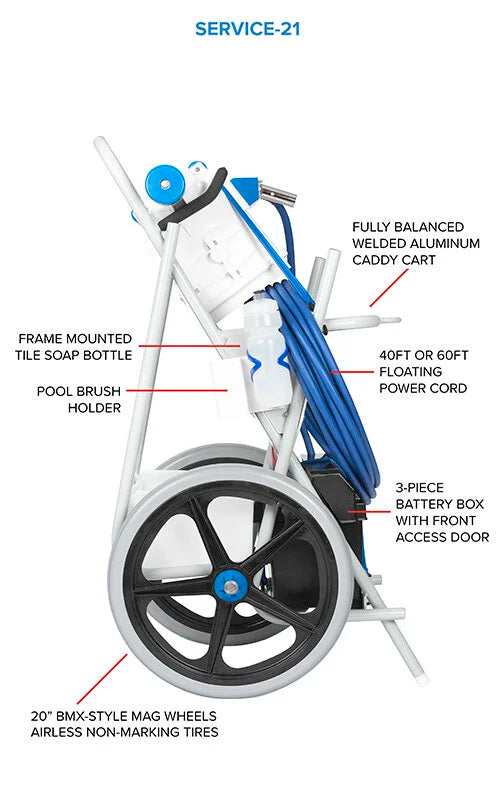

WELDED ALUMINUM CADDY CART
-
20" MAG BMX-STYLE CART WHEELS
-
NON-MARKING SOLID TIRES
-
STAINLESS WHEEL BEARINGS
-

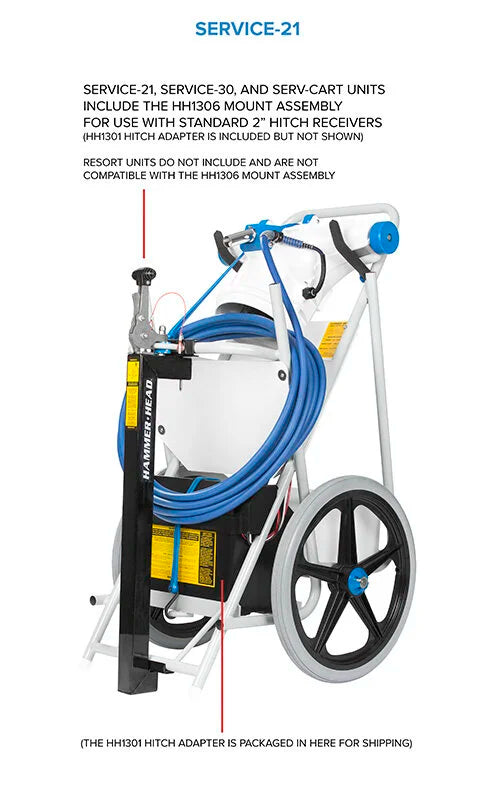

VEHICLE MOUNT ASSEMBLY (HH1306) **Your vehicle must be equipped with a standard 2” hitch receiver.
-
TWO DEBRIS BAGS (HH1506 AND HH1508)
-
SERVICE-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 155 LBS
(approximate) -
21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
SHIPPING DIMENSIONS:
-
PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)
-
SHIPPING WEIGHT: 110lbs
-
FREIGHT CLASS: 250
