Hammer Head Resort Unit | Model Resort30 & Resort21
Keep guest areas spotless—fast. The Hammer Head Resort series brings the speed and simplicity of HammerHead’s portable vacuum systems to hospitality and leisure environments where appearance matters every hour of the day. Roll the cart to the deck, connect the pole and hose, and start capturing leaves, sand, and fine sediment without relying on the pool’s circulation system. Choose the Resort30 for maximum productivity with a 30" vacuum head on large pools and lagoons, or the Resort21 with a 21" head for tighter decks, spas, and intricate layouts. Both deliver smooth handling, strong suction, and oversized debris capacity—so crews can turn pools quickly between peak swim times and events.
Built for daily use at hotels, resorts, HOAs, and waterparks, the Resort units feature a rugged cart with large wheels for easy transport, corrosion-resistant hardware, and serviceable wear parts to keep maintenance simple. Operators get stable tracking on long pulls, confident control around steps and drains, and consistently clean floors that keep water sparkling and guests happy—all with a setup that takes minutes, not hours.
Key highlights
-
Self-contained portable vacuum system—clean effectively without pump-room dependence
-
Two sizes: Resort30 (30" head) for maximum coverage • Resort21 (21" head) for tight spaces and spas
-
High-flow performance with oversized debris bag for leaves, sand, and fine sediment
-
Quick setup: roll to deck, connect pole & hose, and start vacuuming
-
Stable, easy-glide handling—tracks straight, pivots smoothly, hugs corners
-
Heavy-duty cart with large wheels; corrosion-resistant, serviceable construction
-
Ideal for resorts, hotels, HOAs, aquatic centers, and waterparks where fast turnaround matters
NOT INCLUDED:
- 12 VOLT DEEP CYCLE MARINE BATTERY
- STANDARD POOL POLE
- NOT COMPATIBLE WITH THE HAMMER-HEAD VEHICLE MOUNT
SPECIFICATIONS:
- 21" OR 30" INJECTION MOLDED VACUUM HEAD

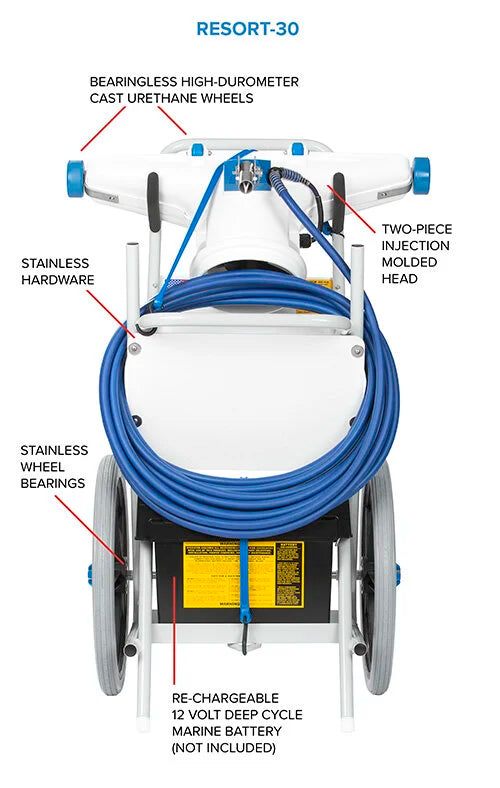

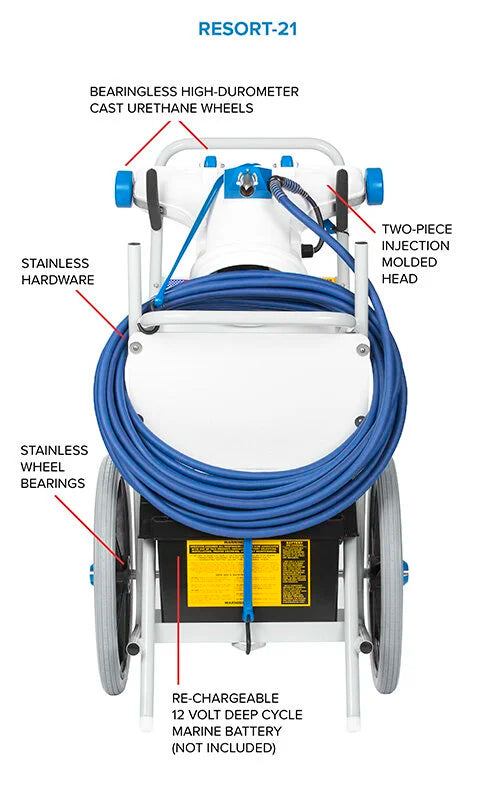

- NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS

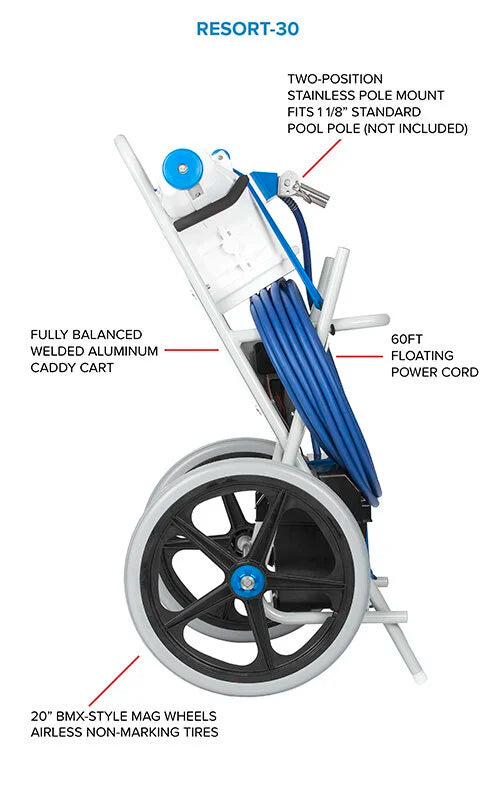

- STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Resort-30)
- ALL STAINLESS HARDWARE

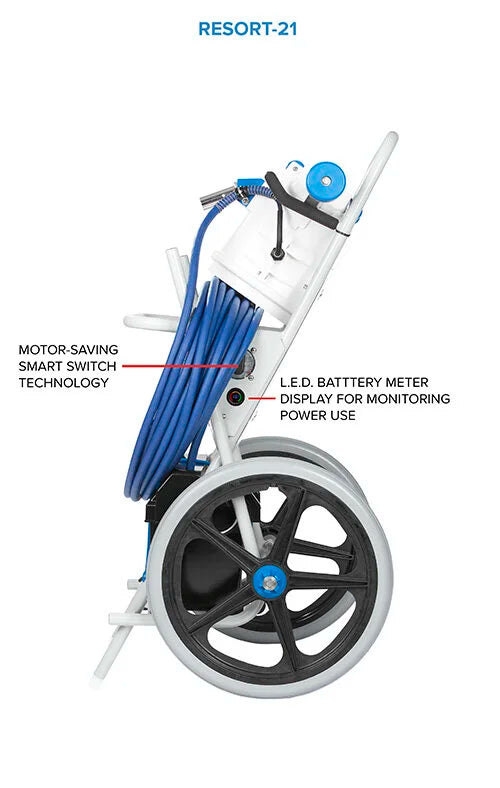

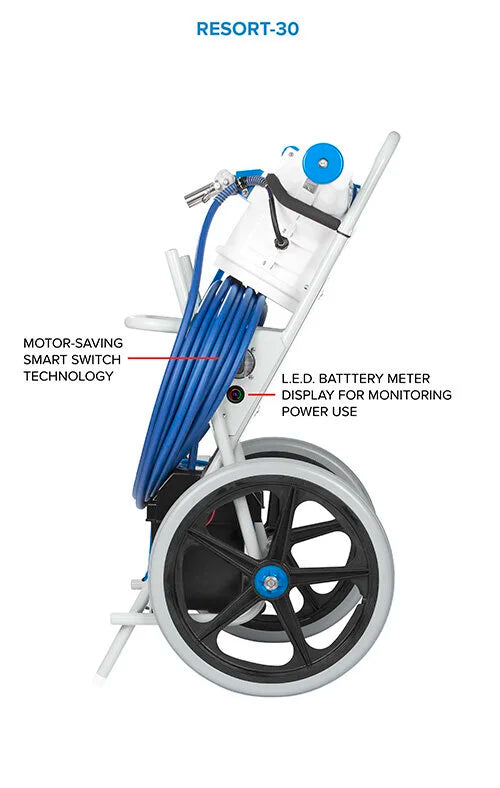

- FEATURING THE PATENTED SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).
- Compatible 12 volt automatic battery charger (Included with all Resort Units)
- L.E.D. battery voltage meter
- SEALED AND PRESSURE TESTED MOTOR
- 60FT FLOATING POWER CORD
- TWO BLADE PROPELLER

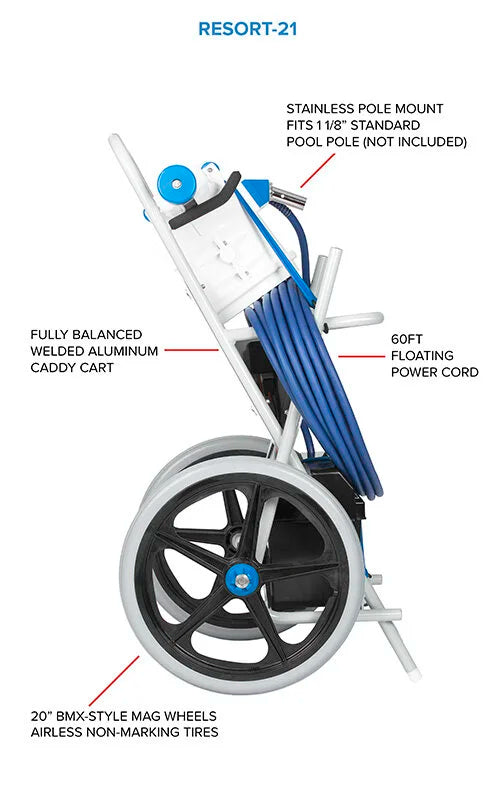

- WELDED ALUMINUM CADDY CART
- 20" MAG BMX-STYLE CART WHEELS
- NON-MARKING SOLID TIRES
- STAINLESS WHEEL BEARINGS
- TWO DEBRIS BAGS (HH1506 AND HH1508)

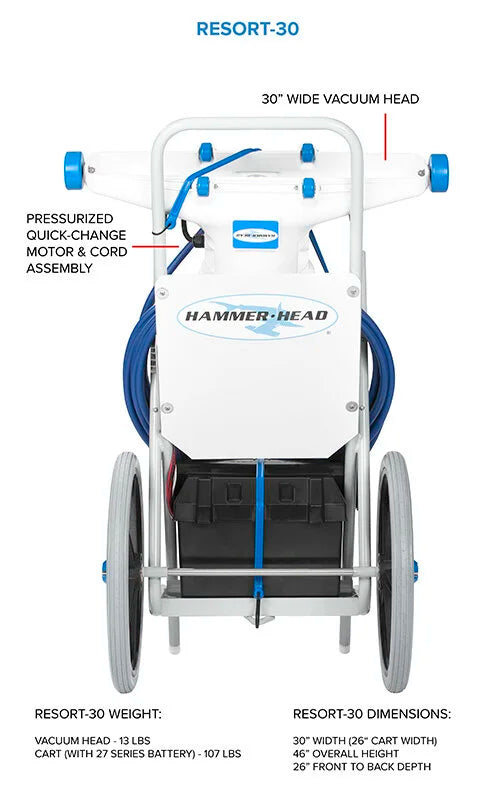

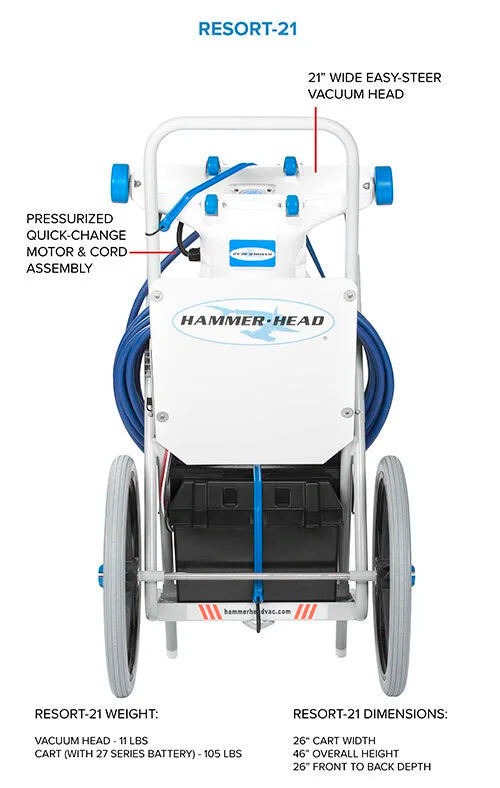

- DIMENSIONS: 26" CART WIDTH, 46" OVERALL HEIGHT, 27" FRONT TO BACK DEPTH
- RESORT-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 130 LBS (approximate)
- RESORT-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 132 LBS (approximate)
- 21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
- 30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS
SHIPPING DIMENSIONS:
- PALLETIZED DIMENSIONS: 30 X 34 X 52 HIGH (one unit per pallet)
- SHIPPING WEIGHT: 90lbs
- FREIGHT CLASS: 250
