Hammer Head 30" Vacuum Head HH1320
Cover more pool in fewer passes. The Hammer Head 30" vacuum head gives service teams a wide 30-inch cleaning path that glides smoothly across large commercial pools, splash pads, and resort decks—perfect when you need fast turnaround without missing debris. Balanced for easy handling, it tracks straight on the floor, hugs corners, and pivots cleanly around drains and insets. The head couples to your standard pole and commercial vacuum hose and is fully compatible with HammerHead service units/carts, so you can roll up, connect, and start cleaning immediately.
Built for daily field work, the HH1320 features a rugged body, low-drag design, and replaceable wear components to keep maintenance simple. Pair it with a HammerHead Service Unit for maximum productivity on big pools, or use it as your go-to head for routine route stops where speed and consistency matter.
Key highlights
-
Extra-wide 30" path—fewer passes on large commercial pools
-
Stable, easy-glide handling that tracks straight and pivots smoothly
-
Compatible with HammerHead service units/carts, standard poles, and commercial vacuum hoses
-
Durable, serviceable construction with replaceable wear parts for long life
-
Ideal for hotels, HOAs, aquatic centers, competition pools, and high-traffic facilities
NOT INCLUDED:
- 12 VOLT DEEP CYCLE MARINE BATTERY
- BATTERY CHARGER
- STANDARD POOL POLE
- BATTERY CASE, BATTERY CONNECTORS, CADDY CART, OR ON/OFF SWITCH
- PLEASE NOTE: Complete vacuum heads do not come with battery-side connections. Wire ends are bare for connection to a Hammer-Head cart or directly to a 12 volt battery using ring terminals or alligator clips. Caution: Direct wire battery connections without the use of a Smart Switch™ or fuse could result in motor damage and may not be covered under warranty.

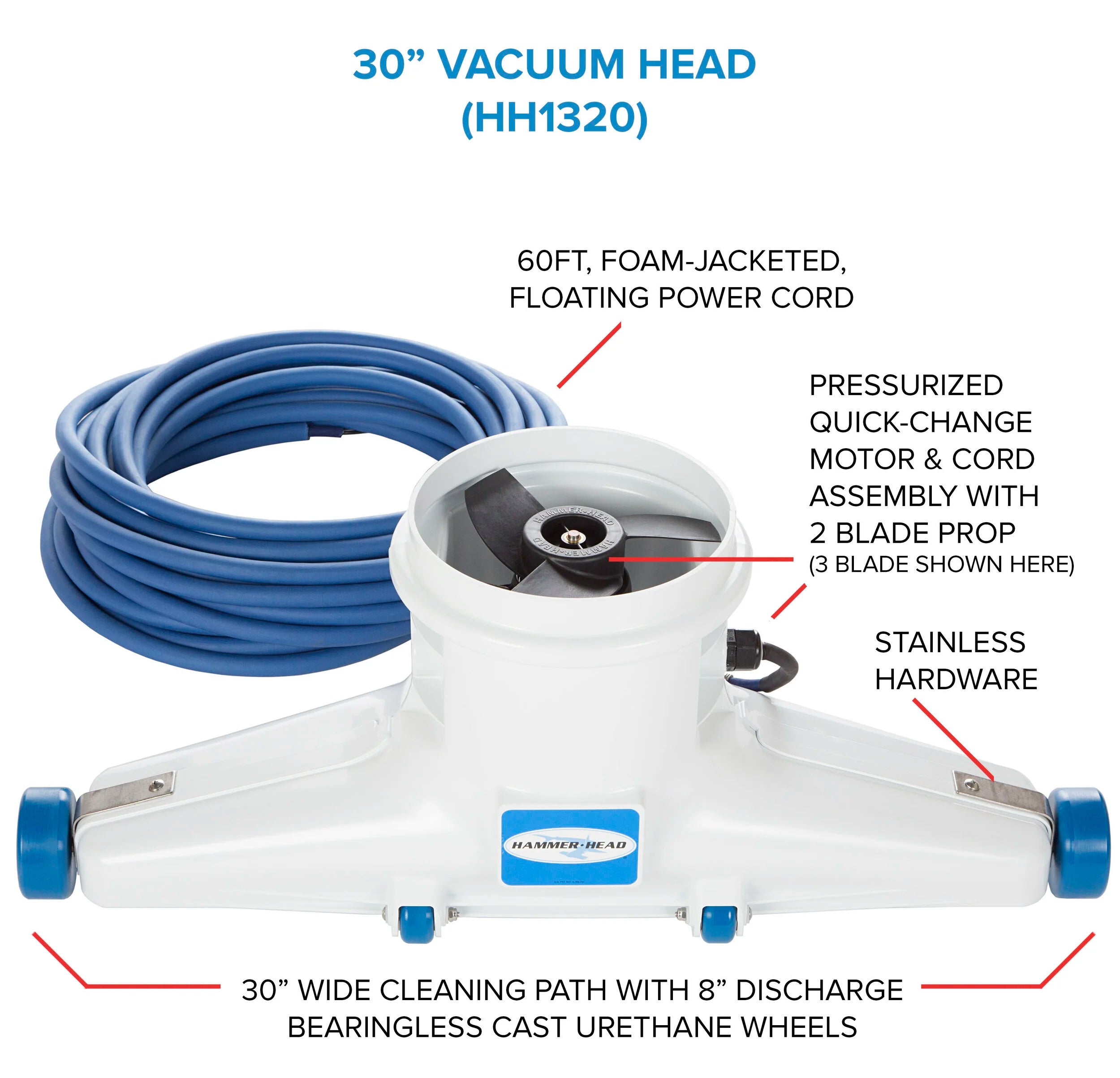

SPECIFICATIONS:
- 30" INJECTION MOLDED VACUUM HEAD
- CLEARANCE OVER POOL FLOOR = 1"
- NON-MARKING, BEARING-LESS, CAST URETHANE HEAD WHEELS
- STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the HH1320 30" COMPLETE VACUUM HEAD)
- ALL STAINLESS HARDWARE
- 35# THRUST PRESSURIZED MOTOR
- 40FT OR 60FT FLOATING POWER CORD
- TWO BLADE PROPELLER
- ONE DEBRIS BAG (HH1508 SUPERFINE)
- 30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS
- SHIPPING DIMENSIONS: 31" X 19" X 13"
- ACTUAL SHIPPING WEIGHT: 26 LBS
