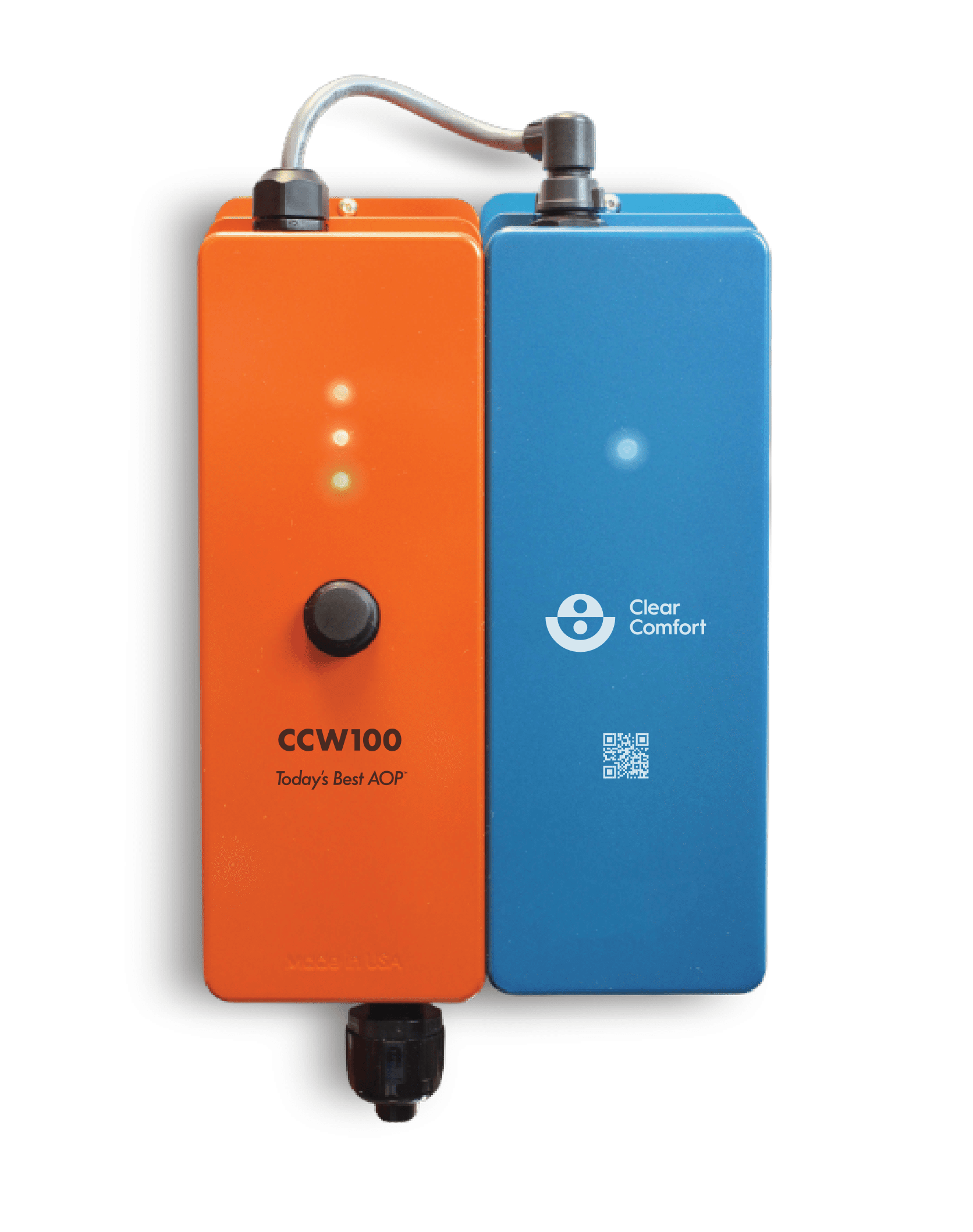

Clear Comfort CCW100 AOP Pool Sanitation System
The Clear Comfort CCW100 is a hydroxyl-based Advanced Oxidation Process sanitation system designed for medium-to-large residential pools.
Using Clear Comfort’s patented AOP technology, the CCW100 helps reduce reliance on traditional chlorine while maintaining clean, fresh-feeling pool water. The system installs into the pool’s return plumbing through an included preassembled manifold and requires only a simple annual cartridge exchange for routine system maintenance.
Why You’ll Love It
- Designed for medium-to-large residential pools
- Hydroxyl-based Advanced Oxidation Process technology
- Helps reduce traditional chlorine demand
- Supports low-chlorine pool operation
- Maximum pool-water flow rate of 90 GPM
- Preassembled manifold installation kit
- Fits into approximately 11 inches of return plumbing in most installations
- Operates on 120V or 230V power
- Low electrical consumption
- Annual five-minute cartridge exchange
- Color-coded system-status lights
- NSF/ANSI 50 certified
- UL certified
- Made in the USA
- Five-year limited system warranty
Hydroxyl-Based Advanced Oxidation
The CCW100 generates hydroxyl radicals that oxidize contaminants in the pool water.
Unlike systems that rely only on a residual chemical sanitizer, Clear Comfort introduces treated air into the circulation system through a Venturi manifold. The resulting oxidation process works throughout the pool-water system while allowing a lower traditional sanitizer residual to be maintained.
The pool must still be properly filtered, circulated, tested, balanced, and maintained according to Clear Comfort’s instructions and applicable health requirements.
Low-Chlorine Pool Operation
Clear Comfort positions the CCW100 as an alternative to heavy reliance on traditional chlorine sanitation.
The system can help reduce:
- Chlorine demand
- Chemical handling
- Chlorine odor
- Harsh-feeling pool water
- Disinfection by-products associated with chlorine sanitation
Clear Comfort does not eliminate the need for regular water testing, filtration, circulation, or proper water balance. Required sanitizer residuals should follow the manufacturer’s instructions and applicable local requirements.
Application and Specifications
- Model: CCW100
- Application: Medium-to-large residential pools
- Technology: Hydroxyl-based Advanced Oxidation Process
- Maximum pool-water flow rate: 90 GPM
- Recommended air-flow rate: 5–7 LPM
- Electrical supply: 120V or 230V, 60 Hz
- Electrical rating at 120V: 1.0A
- Electrical rating at 230V: 0.5A
- Approximate power consumption: 10 watts
- System dimensions: 12 inches high × 8 inches wide × 3 inches deep
- Installation location: Indoor or outdoor equipment area
- Cartridge life expectancy: Approximately 8,000 operating hours
- Typical cartridge service interval: Annually
- Country of manufacture: USA
The CCW100 should operate only while the pool circulation pump is running.
Preassembled Manifold Installation
The CCW100 bundle includes a preassembled manifold that installs in the pool’s main return line after the circulation pump, filter, heater, and other primary pool equipment.
The manifold uses a Venturi to draw treated air from the CCW100 into the return water.
In many plumbing configurations, the manifold fits into a single section of approximately 11 inches of pipe.
The standard equipment sequence is:
Pool → Pump → Filter → Heater → Clear Comfort Manifold → Chlorine Injection → Pool
Installation conditions vary. Existing plumbing, available straight-pipe length, equipment layout, and chemical-feeding equipment should be reviewed before ordering.
Included System Components
The CCW100 system and manifold bundle includes the primary components required for standard installation, including:
- CCW100 control unit
- CCW100 cartridge unit
- Preassembled Venturi manifold
- Air check valve
- Air tubing
- Valved air-flow meter
- Electrical connection components
Standard plumbing supplies, mounting hardware, electrical materials, and installation labor may still be required.
Confirm the current package contents before installation.
System Status Lights
The front of the CCW100 provides simple visual system monitoring.
- Green light: The system is powered and operating properly
- Yellow light: The cartridge has reached approximately 80% of its expected life and a replacement should be ordered
- Red light: The cartridge has reached the end of its expected service life and should be replaced
- Blue light: Indicates cartridge operation and should remain illuminated during normal use
A flashing red light may indicate a condition that requires manufacturer support.
Annual Cartridge Exchange
Routine system maintenance consists primarily of exchanging the CCW100 cartridge approximately once each year.
The process typically takes about five minutes:
- Turn off the CCW100
- Disconnect the cartridge cable
- Remove the air tubing
- Remove the existing cartridge unit
- Transfer the flowmeter when required
- Install the replacement cartridge
- Replace the air check valve when instructed
- Return the old cartridge using the provided return process
Actual cartridge life depends on operating hours. The system-status lights indicate when replacement is approaching or required.
Pool-Care Requirements
Clear Comfort recommends ongoing water testing and maintenance.
Published residential pool guidelines include:
- pH: 7.2–7.6
- Total alkalinity: 60–120 ppm
- Cyanuric acid: 20–40 ppm
- Calcium hardness: 200–800 ppm
- Total dissolved solids: Less than 1,500 ppm
- Phosphates: Less than 200 ppb
The manufacturer also recommends:
- Continuous or near-continuous circulation
- Regular filter maintenance
- Monthly verification of air flow
- Proactive, non-foaming algae prevention
- Brushing, shocking, and filter cleaning when algae first appears
Required chemistry levels may vary based on pool construction, local climate, bather load, sanitation method, and applicable regulations.
Electrical Requirements
The CCW100 can operate from either 120V or 230V, 60 Hz power.
The system should be:
- Properly grounded
- Connected through GFCI protection where required
- Wired to run only when the circulation pump is operating
- Installed according to local and national electrical codes
- Connected by a qualified professional
When connected to standalone power rather than the pool-pump circuit, a compatible timer or control arrangement is required so the CCW100 runs with the circulation system.
Installation Considerations
Before installation, confirm:
- Pool application is appropriate for the CCW100
- Main return flow does not exceed 90 GPM
- Adequate straight-pipe space is available
- The system can be mounted near the injection point
- Air tubing can be kept short and properly routed
- The manifold is installed after the heater and before chemical injection
- The unit is protected from direct sprinkler spray
- The pool water is balanced before startup
- The circulation schedule supports proper system operation
- Electrical supply and GFCI protection are available
Professional installation is recommended.
Certifications
The CCW100 carries current manufacturer-listed certifications and registrations including:
- NSF/ANSI 50 certification for swimming-pool and spa equipment
- UL certification for water-treatment equipment
- Canadian water-treatment equipment certification
- EPA establishment registration
Certification scope and installation requirements should be reviewed when the system is used in regulated applications.
Warranty
The current Clear Comfort residential manual provides:
- Five-year limited warranty on the CCW100 system
- One-year limited warranty on replacement cartridges and cylinders
The warranty applies to the original purchaser and is subject to proper installation, operation, maintenance, electrical supply, and registration requirements.
The warranty must be activated within one year of the Clear Comfort ship date.
Freight, cartridge exchange, removal, reinstallation, and labor costs may not be covered.
Frequently Asked Questions
What size pool is the CCW100 designed for?
The CCW100 is intended for medium-to-large residential pools. Proper selection should also account for water flow, circulation schedule, plumbing layout, bather load, and local conditions.
What is the maximum water flow?
The published maximum pool-water flow rate is 90 GPM.
Does the CCW100 eliminate chlorine completely?
Clear Comfort is designed to significantly reduce reliance on traditional chlorine. Water must still be tested and maintained, and a residual sanitizer may be required based on manufacturer guidance and local regulations.
Is the manifold included?
Yes. The CCW100-SYSMAN bundle includes the AOP system and preassembled manifold installation kit.
Where is the manifold installed?
The manifold installs in the main return line after the pump, filter, heater, and other primary equipment, and before the chlorine-injection point.
How often is the cartridge replaced?
The cartridge is generally exchanged annually or after approximately 8,000 operating hours. The yellow and red status lights indicate cartridge condition.
How much electricity does the system use?
The CCW100 uses approximately 10 watts and can operate on 120V or 230V power.
Can it be installed outdoors?
Yes. Indoor or outdoor installation is permitted when the system is installed according to the manual and protected from direct irrigation and unsuitable environmental conditions.
Can it be used with a saltwater pool?
The residential manual includes integration guidance for saltwater chlorine generators. The salt system should be installed in the proper downstream location.
Is professional installation required?
Professional installation is strongly recommended to ensure correct plumbing, air flow, electrical connection, and system operation.
