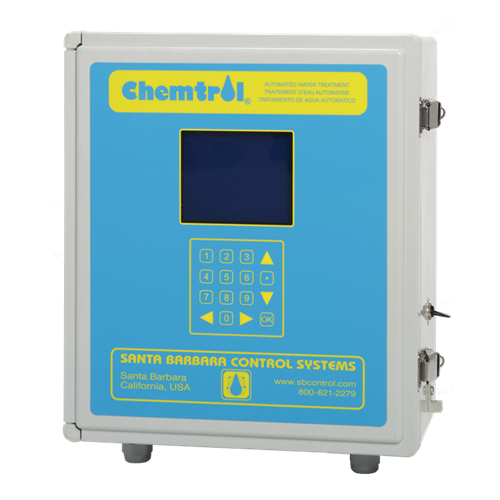

CHEMTROL® PC5000 Programmable Controller
The CHEMTROL® PC5000 is a flagship, all-in-one platform for facilities that demand tight water balance and coordinated equipment automation. It continuously supervises pH and sanitizer (ORP or ppm with compatible sensors) while driving chemical feed with adjustable setpoints, proportional/PID dosing, dose limits, and lockouts to prevent overfeed. At the same time, it orchestrates pumps, filters, heaters, valves, lighting, and auxiliaries through programmable relays and interlocks—so backwash cycles, heat enable, and safety sequences run the same way every time with minimal operator intervention. For high-load pools, spa banks, and institutional facilities, the PC5000 turns daily care into a repeatable, auditable process.
Operators get the tools that matter day-to-day: clear front-panel status and alarms, data logging/trending for compliance and optimization, and options for remote supervision to check readings or adjust setpoints without a site visit. Integration points (relay I/O, alarm contacts, and 4–20 mA/logic where equipped) make it straightforward to pair with peristaltic pumps, erosion feeders, CO₂/acid systems, VFDs, and building management systems. The payoff is consistent water quality, fewer chemistry swings, and coordinated equipment behavior that reduces downtime and operating cost.
Key highlights
-
Unified chemistry + equipment automation in a single controller
-
Continuous pH & sanitizer monitoring with proportional/PID feed and overfeed protection
-
Programmable relays/interlocks for pumps, heaters, valves, lights, and auxiliaries
-
Automated backwash/scheduling with safe heater/pump interlocks
-
Alarms, event/history logs, and optional remote access for oversight and compliance
-
Easy pairing with peristaltic pumps, CO₂/acid systems, and BMS/SCADA via standard I/O
Standard Features
- Complete Chemical Automation: ORP, pH and Solid state sensor (PPM) with selective membrane for Free Chlorine
- Temperature readout with Programmable Heater control
- Flow Cell Assembly with safety flow switch
- Sensor cleaning with programmable acid wash control
- Remote alarm
- Feed Control: Manual, ON/OFF, Proportional Feed, Timer
- Calibration: 1, 2 or 3 Points
- Langelier Index: Scaling and Corrosion alert
- Shock Program: Super-chlorination and DE-chlorinating
- Saving: Chemical and energy saver programs
- Failure Analysis: Dynamic Probe Testing with sensor failure warning for ORP and pH
- Data Logging: On-board memory for 1,000 tests
- Data Printing: Real-time with data logging or downloading from storage memory
- Passwords: Security protection with ten 5-digit codes with 3 different access levels
- Clock: 24-hour universal clock/calendar
- Battery: Maintains all settings in case of power shutdown
- Warranty: Five (5) years on electronics.
PC5000 TECHNICAL SPECIFICATIONS
- ORP readout in millivolts with programmable oxidizer feed control
- FREE CHLORINE readout in ppm or mg/l with programmable sanitizer feed control
- pH readout with programmable acid and base feed controls
- Temperature readout in degrees Fahrenheit or Celsius with programmable heater control
- Bypass line with in-line filter, flow meter, safety flow switch, two control valves and sampling valve
- Sensor cleaning with programmable acid wash control
- Remote alarm (hot or dry contacts)
- Rain and splatter proof NEMA Type 3R fiberglass cabinet
Options
- OPTION TDS: TDS/Conductivity control with sensor for dump valve or salt chlorine generator
- OPTION FLOW: Flow monitoring & totalizer with electronic sensor and adjustable alarms
- OPTION LEVEL: Water level control with electronic sensor and fill valve control
- OPTION PRESS: Influent and effluent pressure monitoring with sensors and adjustable alarms
- OPTION ETHCOM: Full duplex remote computer operation with Ethernet / Web-access communications
- OPTION 420M: 4-20mA signal (4-channels) for monitoring display outputs
- OPTION BMS: Modbus/BACnet-protocol communication for Building Management Systems
