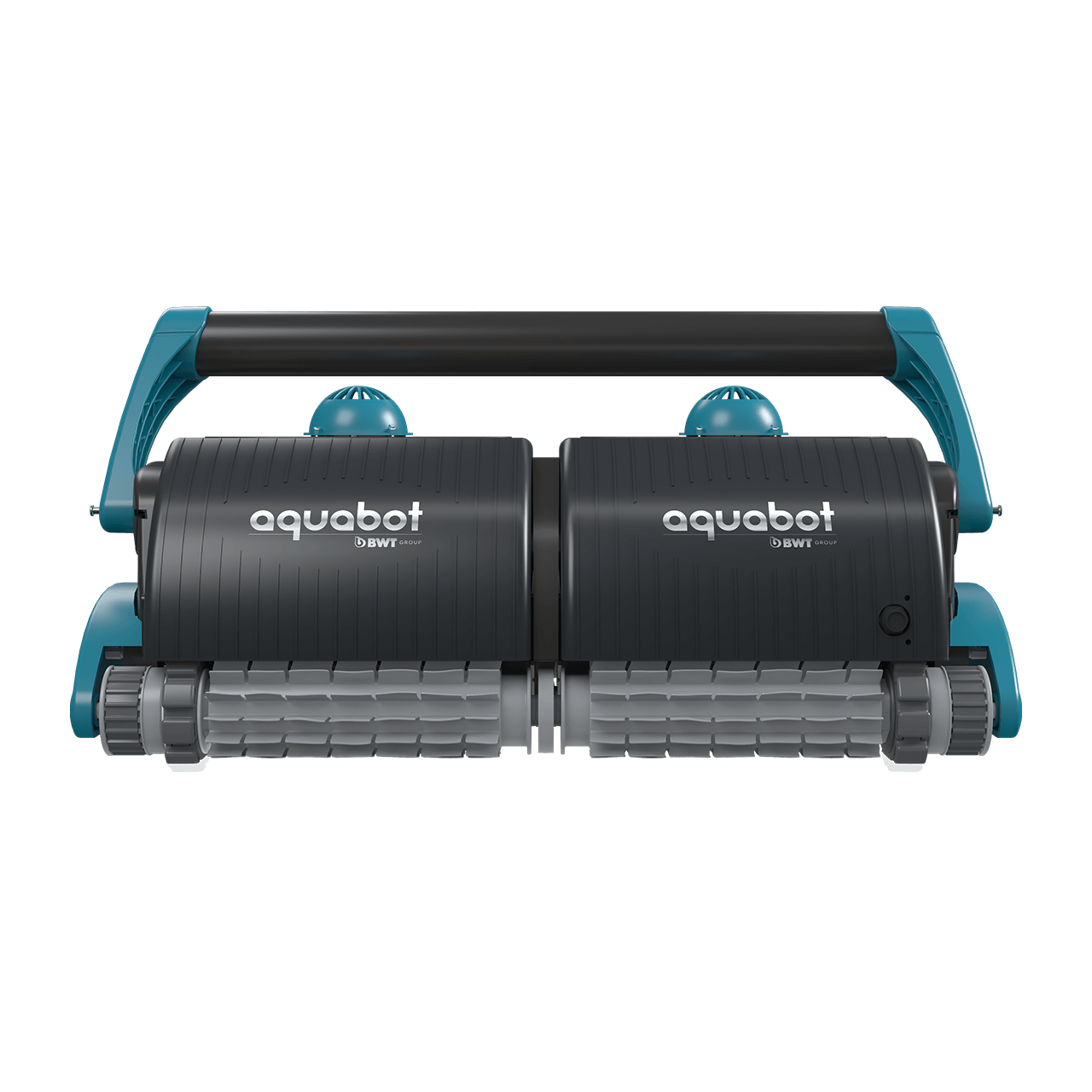

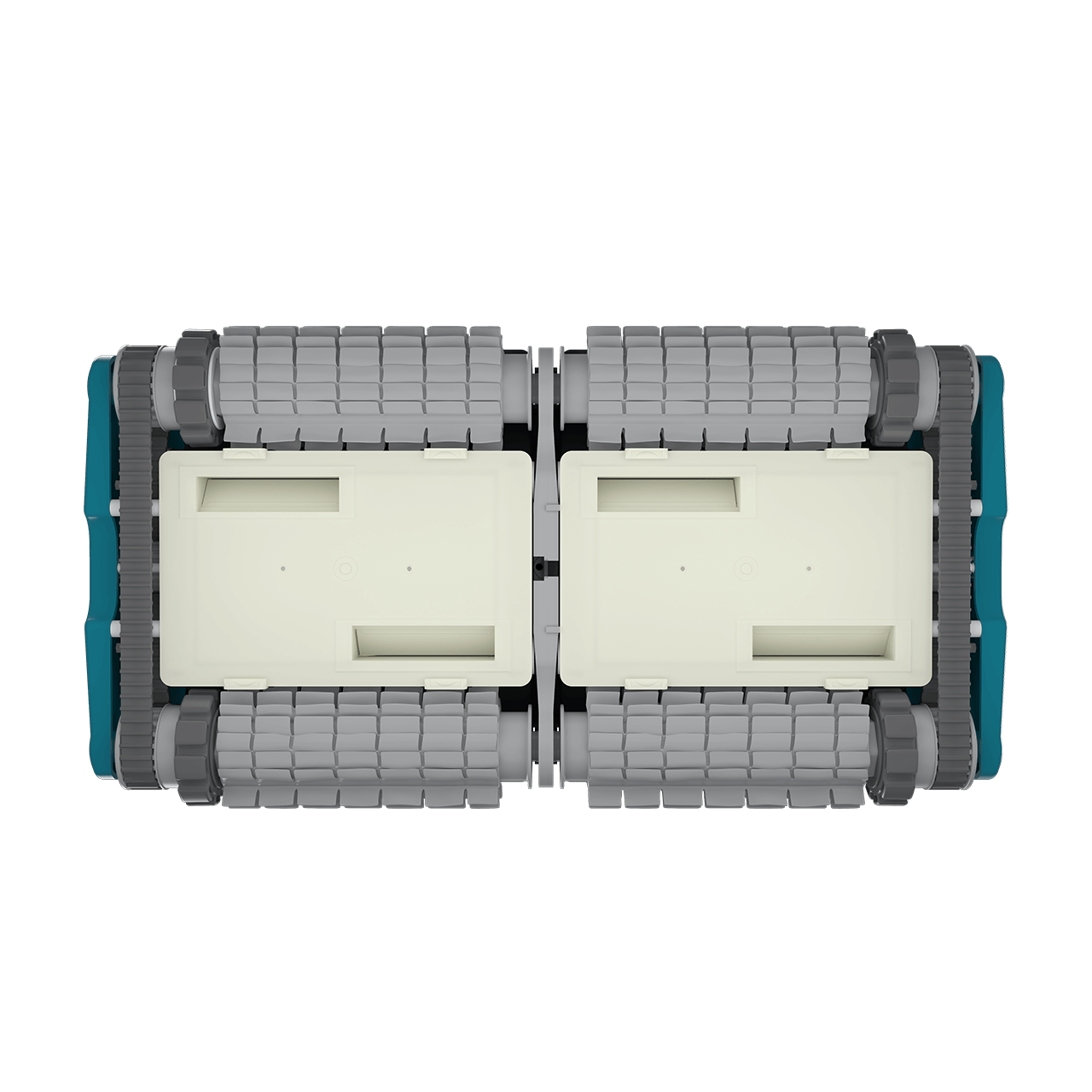

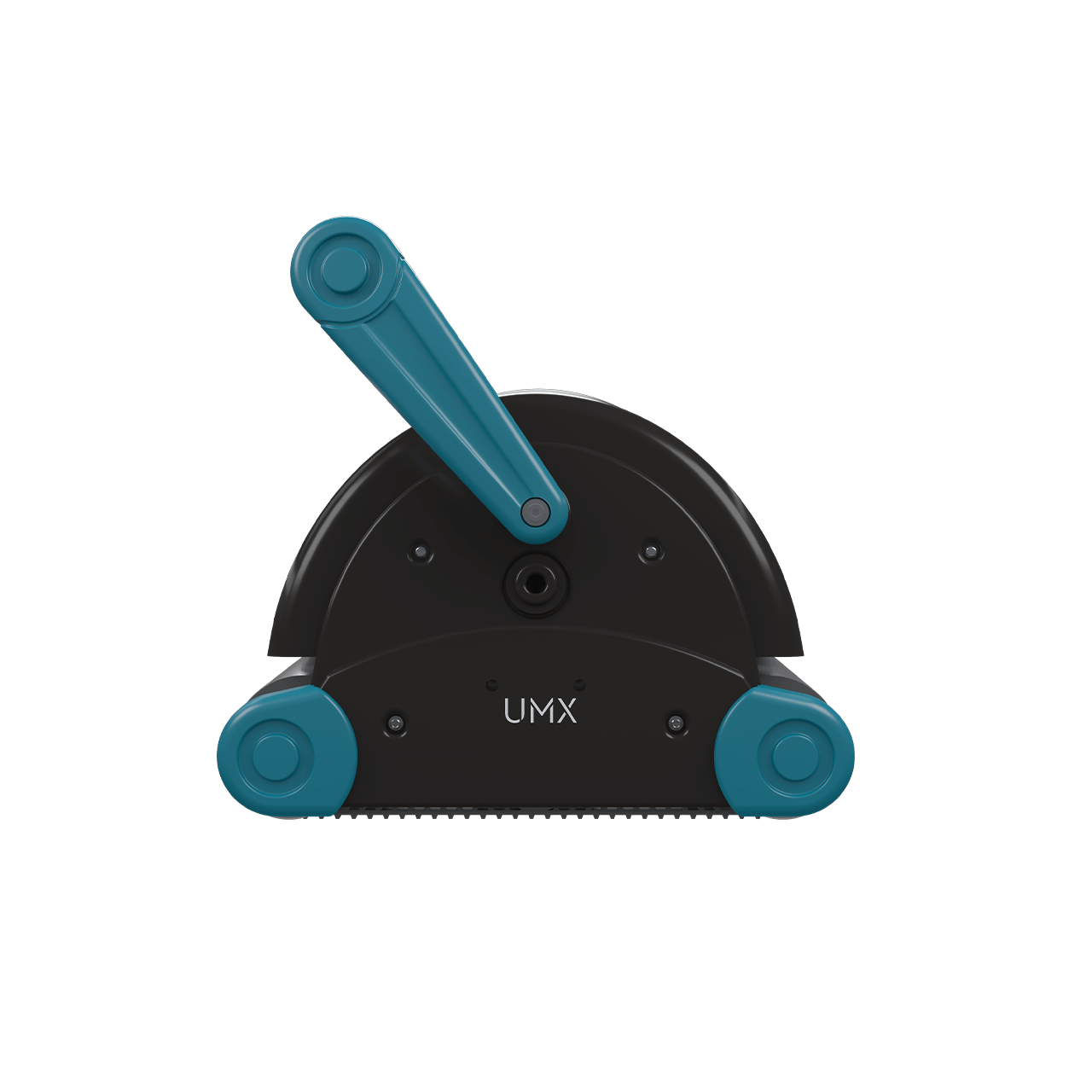

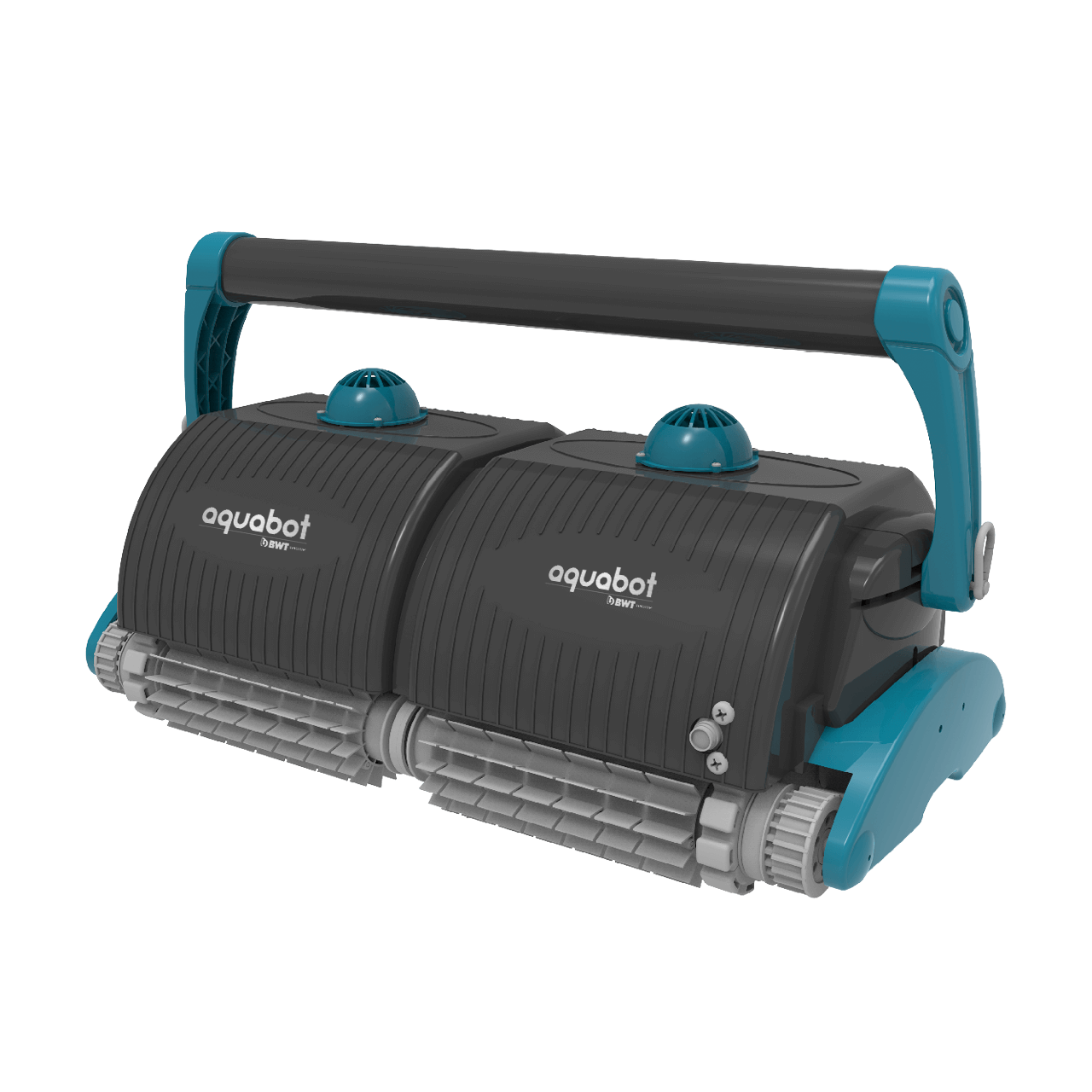

BWT Aquabot Ultramax Commercial Robotic Pool Cleaner

The BWT Aquabot Ultramax is a high-capacity commercial robotic pool cleaner designed for large public and Olympic-size pools up to 164 feet long.

Dual Smart Drive motors, intelligent navigation, 10,000 GPH filtration, and two reusable 2-micron XL filter bags provide automatic cleaning across the pool floor, walls, and waterline. Choose between PVA foam or PVC brush configurations to match the facility’s pool surface and cleaning requirements.

Why You’ll Love It

• Designed for large public and Olympic-size pools
• Recommended for commercial pools up to 164 feet long
• Cleans the floor, walls, and waterline
• Dual Smart Drive motors
• Smart navigation algorithm
• Infrared obstacle sensor
• Powerful 10,000 GPH filtration
• Circulates up to 60,000 gallons during a six-hour cycle
• Two reusable 2-micron XL filter bags
• Choice of PVA foam or PVC brush configuration
• Three selectable cleaning cycles
• Three delayed-start settings
• Automatic shutoff after each cycle
• 150-foot floating cable
• Premium transport and storage caddy included

Built for Large Commercial Pools

The Ultramax is specifically designed for demanding commercial aquatic facilities, including:

• Olympic-size pools
• Competition pools
• Municipal aquatic centers
• Universities and schools
• Recreation centers
• Large hotel and resort pools
• Public swimming facilities
• Other commercial pools up to 164 feet long

Its commercial platform, extended cable, and high-capacity filtration system help reduce the labor required to clean large pool surfaces.

Floor, Wall and Waterline Cleaning

The Ultramax automatically cleans:

• Pool floors
• Compatible pool walls
• The waterline

The onboard filtration system collects loosened dirt and debris inside the cleaner rather than sending it into the facility’s main pool filter.

Cleaning coverage may vary around steps, benches, ledges, gutters, drains, lane equipment, movable floors, and other areas the robot cannot physically access.

Choose Your Brush Configuration

The Ultramax is available in two configurations.

PVA Foam — SW10003.1

The PVA model uses high-traction foam brushes designed to provide strong surface contact after becoming fully saturated.

PVC — SW10003.2

The PVC model is identified by BWT as compatible with all pool finishes.

Both configurations share the same cleaning coverage, navigation, filtration performance, cable length, cycle settings, weight, and included premium caddy.

Smart Navigation

The Ultramax uses a smart navigation algorithm to calculate an efficient cleaning route through the pool.

The system helps the cleaner:

• Cover large pool surfaces efficiently
• Reduce unnecessary overlap
• Adjust direction around obstacles
• Navigate long lanes and broad open areas
• Complete cleaning within the selected cycle

An infrared sensor assists with obstacle detection and directional changes.

Dual Smart Drive Motors

Two Smart Drive motors provide independent propulsion and steering.

The dual-drive system helps the Ultramax maneuver across large commercial pool surfaces, climb compatible walls, and change direction as it moves through the pool.

10,000 GPH Filtration

The Ultramax filters approximately 10,000 gallons of pool water per hour.

During the six-hour cleaning cycle, up to approximately 60,000 gallons can circulate through the cleaner.

The high-flow system helps collect common commercial-pool debris, including:

• Leaves
• Sand
• Silt
• Dirt
• Hair
• Pollen
• Fine suspended particles

Two 2-Micron XL Filter Bags

The Ultramax uses two reusable XL filter bags capable of capturing particles down to approximately 2 microns.

The high-capacity bags collect both visible debris and fine material that may affect water clarity.

Keeping both filter bags clean is important for maintaining filtration flow and cleaning performance.

Cleaning Cycles

Choose from three automatic cleaning durations:

• 3 hours
• 4 hours
• 6 hours

The appropriate cycle can be selected based on pool size, debris conditions, cleaning frequency, and the facility’s available maintenance window.

The Ultramax shuts off automatically at the end of the selected cycle.

Delayed Start

The cleaning cycle can be delayed by:

• 2 hours
• 3 hours
• 5 hours

This allows facility staff to place the cleaner in the pool before the desired start time and coordinate cleaning around programming, swimmers, or overnight maintenance.

150-Foot Floating Cable

The Ultramax includes a 150-foot floating cable designed for use in large commercial pools.

The extended cable provides the reach required for large public and Olympic-size installations. Proper cable placement and organization help support complete pool coverage.

Premium Commercial Caddy

A premium transport and storage caddy is included with both Ultramax configurations.

The caddy provides organized storage and transport for the cleaner, floating cable, and power equipment between cleaning cycles.

Pool Compatibility

The BWT Aquabot Ultramax is designed for:

• Commercial swimming pools
• Large public pools
• Olympic-size pools
• Pools up to 164 feet long
• Floor, wall, and waterline cleaning

Before ordering, confirm:

• Pool length and configuration
• Pool-surface material
• Preferred brush configuration
• Wall and floor transitions
• Steps, benches, and ledges
• Lane equipment and other obstacles
• Required cable reach
• Power-unit location
• Retrieval and storage access

Technical Specifications

• Brand: BWT Aquabot
• Product: Ultramax
• Cleaner type: Corded commercial robotic pool cleaner
• Recommended application: Large public and Olympic-size pools
• Maximum recommended pool length: 164 feet
• Cleaning coverage: Floor, walls, and waterline
• Navigation: Smart navigation algorithm
• Obstacle detection: Infrared sensor
• Drive system: Dual Smart Drive motors
• Filtration rate: 10,000 GPH
• Maximum circulation per six-hour cycle: Up to 60,000 gallons
• Filter type: Two reusable XL filter bags
• Particle capture: Down to approximately 2 microns
• Cleaning cycles: 3, 4, or 6 hours
• Delayed start: 2, 3, or 5 hours
• Cable length: 150 feet
• Weight: 73 pounds
• Automatic shutoff: Included
• Transport and storage: Premium caddy included

Available Variants

PVA Foam

• Official BWT product number: SW10003.1
• Brush configuration: PVA foam

PVC

• Official BWT product number: SW10003.2
• Brush configuration: PVC
• BWT-listed compatibility: All pool finishes

Included Equipment

• BWT Aquabot Ultramax commercial robotic pool cleaner
• Selected PVA foam or PVC brush configuration
• Power and control equipment
• 150-foot floating cable
• Two reusable 2-micron XL filter bags
• Premium commercial caddy

Frequently Asked Questions

What size pool is the Ultramax designed for?

BWT recommends the Ultramax for large commercial and Olympic-size public pools up to 164 feet long.

Does it clean the walls and waterline?

Yes. The Ultramax cleans the pool floor, walls, and waterline.

What is the difference between the PVA and PVC models?

The PVA model uses high-traction foam brushes. The PVC model uses PVC brushes and is identified by BWT as compatible with all pool finishes.

Do both versions have the same performance specifications?

Yes. Both models share the same filtration rate, navigation system, cleaning coverage, cycle settings, cable length, weight, and included caddy.

How much water does it filter?

The Ultramax filters approximately 10,000 gallons per hour and can circulate up to 60,000 gallons during a six-hour cycle.

How fine is the filtration?

The two reusable XL filter bags capture particles down to approximately 2 microns.

What cleaning cycles are available?

The Ultramax provides 3-, 4-, and 6-hour cleaning cycles.

Can the start time be delayed?

Yes. The timer provides 2-, 3-, and 5-hour delayed-start settings.

How long is the cable?

The included floating cable is 150 feet long.

Is a caddy included?

Yes. Both variants include a premium commercial transport and storage caddy.

How much does the cleaner weigh?

The official BWT specifications list the Ultramax at 73 pounds.

Need Help Selecting a Brush Type?

Contact Summit Pool Supply for help reviewing pool dimensions, surface type, brush configuration, cable reach, and commercial robotic-cleaner compatibility.

Contact Summit Pool Supply by call or text at (866) 689-0086.
