BWT Aquabot Magnum Jr Commercial Robotic Pool Cleaner
The BWT Aquabot Magnum Jr is a commercial robotic pool cleaner designed for medium-size public pools up to 68 feet long.
Aqua Smart Navigation combines a gyroscope and intelligent algorithm to detect obstacles and calculate an efficient cleaning path. Dual drive motors, durable PVC brushes, and approximately 4,800 GPH of self-contained filtration provide automatic cleaning across the pool floor, walls, and waterline.
Why You’ll Love It
- Designed for commercial and public pools
- Suitable for pools up to 68 feet long
- Cleans the floor, walls, and waterline
- Aqua Smart Navigation with gyroscope
- Intelligent obstacle detection and route planning
- Dual drive motors
- Approximately 4,800 GPH filtration
- Reusable 2-micron filter bag
- Durable PVC brushes
- Compatible with common pool finishes
- Three selectable cleaning cycles
- Three delayed-start settings
- 100-foot floating cable
- Automatic shutoff after each cycle
- Premium transport and storage caddy included
- Fully self-contained cleaning system
Built for Medium-Size Commercial Pools
The Aquabot Magnum Jr is designed for demanding public and commercial aquatic facilities, including:
- Municipal pools
- Hotels and resorts
- Schools and universities
- Recreation centers
- Fitness and health clubs
- HOA and multifamily pools
- Therapy and training pools
- Other public pools up to 68 feet long
The cleaner operates independently from the facility’s circulation system and does not require a vacuum hose, booster pump, or connection to the pool filter.
Floor, Wall and Waterline Cleaning
The Magnum Jr automatically cleans:
- Pool floors
- Compatible pool walls
- The waterline
Its PVC brushes scrub the pool surface while the internal filtration pump captures loosened debris inside the cleaner.
Coverage may vary around steps, benches, ledges, drains, gutters, lane equipment, sharp transitions, and other areas the robot cannot physically access.
Aqua Smart Navigation
The Aqua Smart Navigation system combines an integrated gyroscope with an intelligent cleaning algorithm.
As the Magnum Jr travels through the pool, the system scans its surroundings, detects obstacles, and calculates an efficient cleaning path. This helps reduce unnecessary overlap and improves coverage during the selected cleaning cycle.
Dual Drive Motors
Two independent drive motors provide controlled propulsion and directional changes.
The dual-drive system helps the Magnum Jr maneuver across pool floors, climb compatible walls, and adjust its route when it encounters obstacles or changes in pool geometry.
Approximately 4,800 GPH Filtration
The Magnum Jr filters approximately 4,800 gallons of pool water per hour through its self-contained filtration system.
It helps collect:
- Leaves
- Sand
- Silt
- Dirt
- Hair
- Pollen
- Fine suspended particles
- Other common pool debris
Collected material remains inside the cleaner rather than being directed into the facility’s main filtration system.
Reusable 2-Micron Filter Bag
The Magnum Jr uses one reusable filter bag capable of capturing particles down to approximately 2 microns.
This fine filtration helps remove visible debris and smaller material that may affect water clarity.
The filter bag should be emptied and rinsed after each cleaning cycle. A restricted or overloaded bag can reduce suction and cleaning performance.
Durable PVC Brushes
The Magnum Jr uses durable PVC brushes for traction and surface scrubbing.
BWT identifies the cleaner as compatible with common pool finishes. Unusual surfaces, wall transitions, or highly slick finishes should still be reviewed before ordering.
Cleaning Cycles
The Magnum Jr provides three selectable cleaning cycles:
- 3 hours
- 4 hours
- 5 hours
The appropriate cycle can be selected based on pool size, debris conditions, cleaning frequency, and available maintenance time.
The cleaner shuts off automatically at the end of the selected cycle.
Delayed Start
The cleaning cycle can be delayed by:
- 2 hours
- 3 hours
- 4 hours
This allows facility staff to place the cleaner in the pool before the desired start time and coordinate cleaning around swimmers, scheduled programming, or overnight maintenance.
100-Foot Floating Cable
The Magnum Jr includes a 100-foot floating cable for use in medium-size commercial pools.
Before operation:
- Position the power and control unit safely away from the water
- Uncoil enough cable to reach the full cleaning area
- Remove knots and excessive twisting
- Distribute the cable across the pool
- Keep unused cable organized
- Inspect the cable for damage before each cycle
Proper cable management supports complete coverage and reduces unnecessary wear.

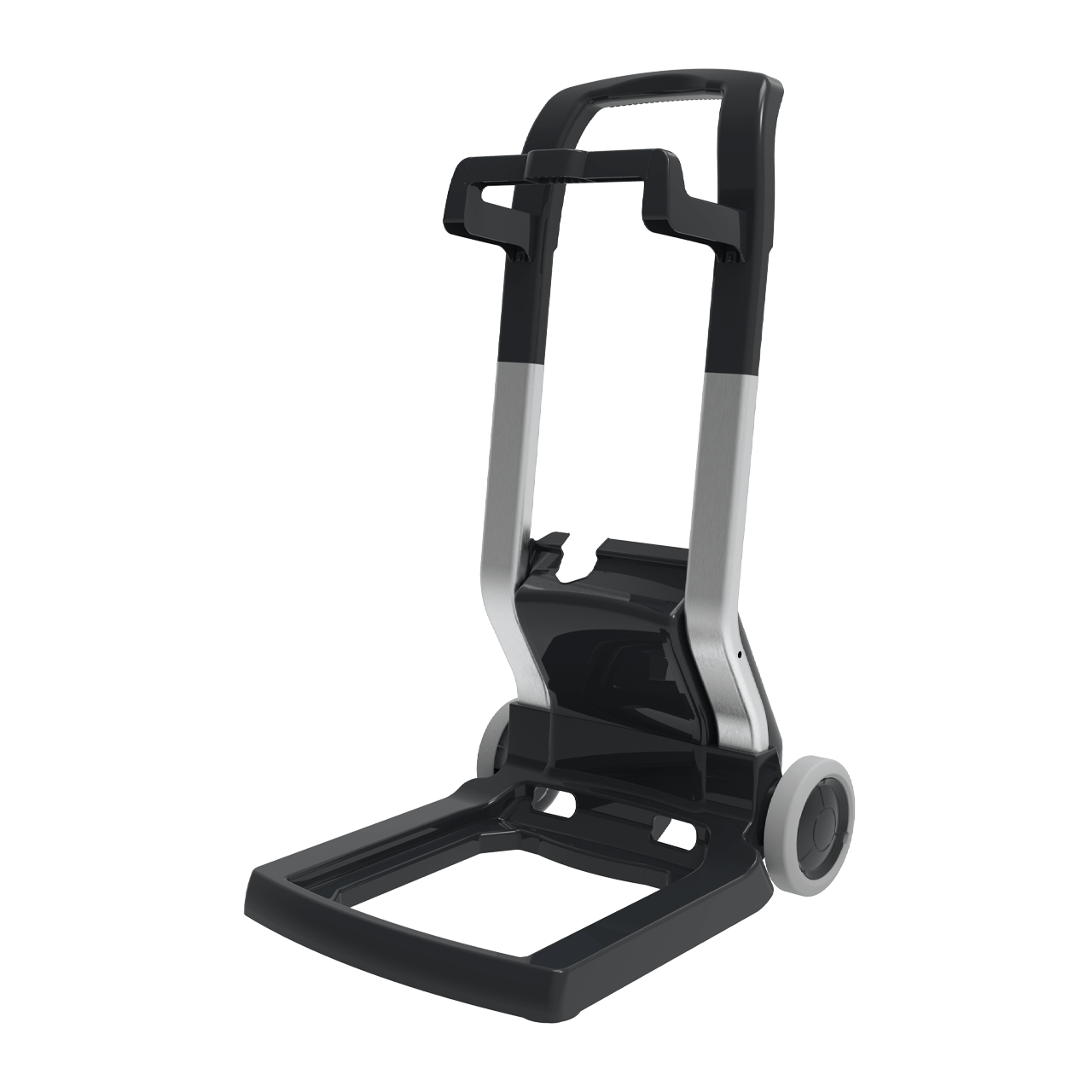

Premium Commercial Caddy
A premium transport and storage caddy is included with the Magnum Jr.
The caddy provides organized storage for:
- Robotic cleaner
- Floating cable
- Power and control unit
- Cleaning accessories
Allow the cleaner to drain before placing it onto the caddy.
Pool Compatibility
The Aquabot Magnum Jr is designed for:
- Commercial and public swimming pools
- Pools of any shape up to 68 feet long
- Floor, wall, and waterline cleaning
- Common commercial pool finishes
- Facilities requiring frequent automatic cleaning
Before ordering, confirm:
- Pool length and configuration
- Surface material
- Wall transitions
- Steps, benches, and ledges
- Lane equipment and other obstacles
- Required cable reach
- Power-unit location
- Retrieval and storage access
- Typical debris conditions
Technical Specifications
- Brand: BWT Aquabot
- Product: Magnum Jr
- Official BWT product number: SW10004.2
- Summit model number: RUCS-MGJ0M-JU00
- Cleaner type: Corded commercial robotic pool cleaner
- Recommended application: Medium-size commercial and public pools
- Maximum recommended pool length: 68 feet
- Cleaning coverage: Floor, walls, and waterline
- Navigation: Aqua Smart Navigation
- Navigation components: Gyroscope and intelligent algorithm
- Drive system: Dual drive motors
- Filtration rate: Approximately 4,800 GPH
- Filter type: One reusable filter bag
- Particle capture: Down to approximately 2 microns
- Brush type: PVC
- Cleaning cycles: 3, 4, or 5 hours
- Delayed start: 2, 3, or 4 hours
- Cable length: 100 feet
- Weight: Approximately 33 pounds
- Automatic shutoff: Included
- Transport and storage: Premium caddy included
Included Equipment
- BWT Aquabot Magnum Jr commercial robotic pool cleaner
- Power and control unit
- 100-foot floating cable
- Reusable 2-micron filter bag
- PVC brushes
- Premium commercial caddy
Confirm current package contents before ordering.
Routine Maintenance
For dependable commercial operation:
- Disconnect the cleaner from power
- Remove it from the pool
- Allow retained water to drain
- Remove and rinse the filter bag
- Clear debris from the intake
- Inspect the brushes and drive components
- Rinse the cleaner with fresh water
- Inspect and organize the floating cable
- Store the equipment on the included caddy
Clean the filter bag after every cycle. Heavy debris conditions may require more frequent inspection.
Do not operate the cleaner while swimmers are in the pool.
Handling and Storage
The Magnum Jr weighs approximately 33 pounds before accounting for retained water.
Allow the cleaner to drain before lifting, use its designated lifting points, and never pull or carry it by the floating cable.
Store the cleaner, cable, and power unit on the included caddy in a dry, protected location.
Frequently Asked Questions
Is the Aquabot Magnum Jr a commercial pool cleaner?
Yes. BWT specifically positions the Magnum Jr for commercial and public swimming pools.
What size pool can it clean?
It is designed for pools of any shape up to approximately 68 feet long.
Does it clean walls and the waterline?
Yes. The official BWT U.S. specifications list floor, wall, and waterline cleaning.
How much water does it filter?
The Magnum Jr filters approximately 4,800 gallons per hour.
How fine is the filtration?
Its reusable filter bag captures particles down to approximately 2 microns.
What cleaning cycles are available?
The cleaner provides 3-, 4-, and 5-hour cycles.
Can the start be delayed?
Yes. The internal timer provides 2-, 3-, and 4-hour delayed-start settings.
How long is the cable?
The included floating cable is 100 feet long.
What type of brushes does it use?
The Magnum Jr uses durable PVC brushes.
Does it connect to the facility’s pool filter?
No. It is fully self-contained and uses its own filtration pump and filter bag.
Is a caddy included?
Yes. A premium commercial transport and storage caddy is included.
What warranty is included?
The official U.S. product page reviewed for this model does not publish a warranty duration. Confirm the applicable manufacturer warranty before publishing a specific term.
