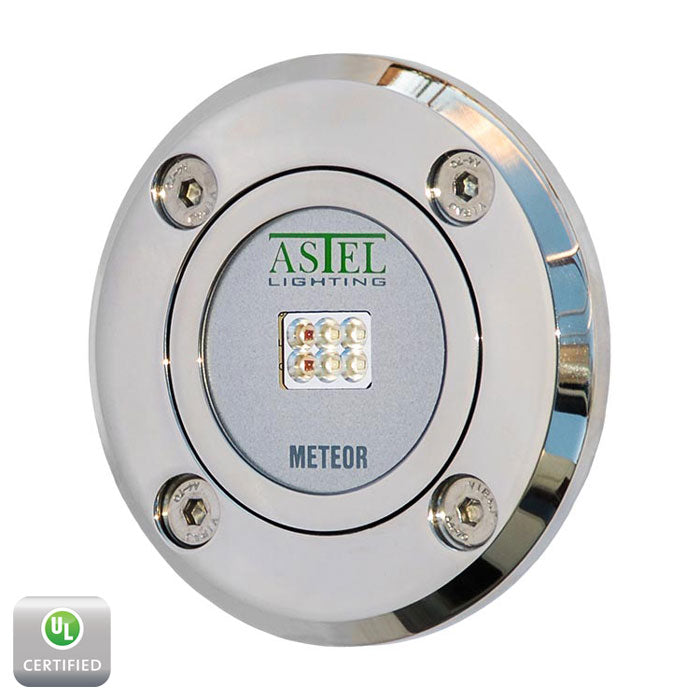

Astel METEOR LSR0640 Ultra-Thin Underwater LED Pool Light
✓ Free Shipping
✓ Sales Tax Only In CA
✓ Full Manufacturer Warranty
✓ Need Help Before Ordering? Give us a call
(866) 689-0086
The Astel METEOR LSR0640 is a compact, ultra-thin, UL 676-listed underwater LED pool light designed for surface-mounted installation. Its integrated driver eliminates the need for an external driver, creating a self-contained lighting unit with a profile measuring only 0.39 inches thick.
The LSR0640 features six power LEDs, an electropolished SAE 316L stainless-steel casing and a high-grade polycarbonate optical window with a vacuum-metalized reflector. It produces up to 950 lumens in Cool White while consuming a maximum of 10 watts.
Standard and wide-beam configurations are available. The standard configuration uses an ultra-clear optical window for focused illumination, while the wide configuration uses a high-efficiency diffuser to provide smooth, uniform light distribution.
Single-color and multi-color lighting configurations are available. Multi-color RGB, WGB and RGBW models allow the lighting color to be changed manually or automatically through the complete color spectrum. Optional Astel controls support digital dimming, synchronization, automation-system integration and DMX512 operation.
Key Features
- Compact, ultra-thin surface-mounted design
- UL 676 listed
- Integrated LED driver
- Six power LEDs
- Electropolished SAE 316L stainless-steel casing
- High-grade polycarbonate optical window
- Vacuum-metalized reflector
- IP68 protection
- Maximum output of 950 lumens in Cool White
- Maximum power consumption of 10 watts
- 12–24 VDC power supply
- Standard and wide optical configurations
- Single-color and multi-color lighting options
- Cable lengths up to 150 feet
- Microprocessor network control
- Digital dimming
- Polarity protection
- Transient protection
- Thermal protection
- Optional momentary-switch control
- Optional automation and DMX512 control
- Multiple optional mounting adapters and niches
- No bonding required according to Astel
Technical Specifications
- Model: METEOR LSR0640
- Power supply: 12–24 VDC
- Maximum current: 800 mA at 12 VDC or 410 mA at 24 VDC
- Maximum power consumption: 10 W
- Maximum luminous flux: 950 lumens in Cool White
- Standard beam angle: 60°
- Wide beam angle: 100°
- Optical window: High-grade polycarbonate glass
- Reflector: Vacuum-metalized
- Operating temperature: 14°F to 122°F
- Casing: SAE 316L stainless steel
- Protection rating: IP68
- Dimensions: 3.9-inch diameter × 0.39-inch thickness
- Weight: 0.88 lb
Available Configurations
Select the required light color, beam angle and cable length.
- Light colors: Cool White, Warm White, Blue, RGB Multi-Color, WGB Multi-Color or RGBW Multi-Color
- Beam configurations: Standard 60° or Wide 100°
- Cable lengths: 15 ft, 50 ft, 100 ft or 150 ft
Optional Installation Accessories
Astel offers mounting accessories for new installations and retrofit applications, including flush-fitting, inlet-fitting, large-niche and small-niche adapters. Appropriate accessories depend on the pool construction and existing installation.
Optional Control Components
- Momentary push-button control
- LCI41 converter interface for automation-system integration
- LXU01 DMX512 interface
- UB4 controller
- Optional RC4-BLE remote
Install and operate the light in accordance with Astel’s official installation instructions.
