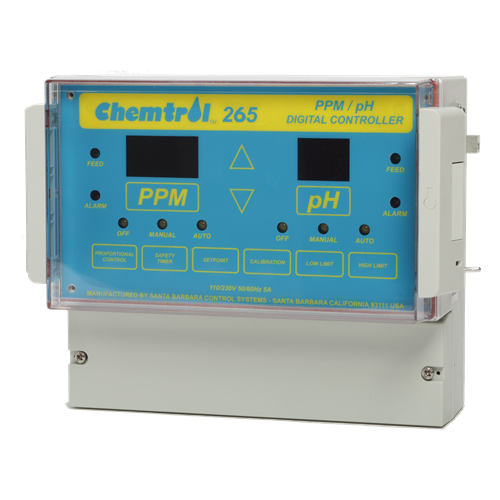

CHEMTROL® CH265 pH / Free Chlorine Digital Controller
CHLORINE ANALYSIS MADE SIMPLE
CHEMTROL® CH265 PPM/pH Digital Controller introduces the new PPM Sensor for Free Chlorine control. A microprocessor-based digital controller, designed to maintain both free chlorine (PPM) and water pH in Municipal Water, Well Water, Waste water and Industrial applications.
- No Reagents
- No Maintenance
- No Pressure Regulator.
- Free CL Range 0.00 to 10.0 PPM
- pH Range 0.0 – 14.0
- Programmable 4-20 mA output to PID and/or Chart Recorder
- Programmable 4-20 mA Output Control with Adjustable Setpoint
- Dry Contact Remote Alarm
STANDARD FEATURES
- Easy to install
- Simple to use
- All Control Functions on Front Panel
- Separate Adjustable Setpoints
- Separate Adjustable Alarms
- Acid/Base Selector
- Proportional Feed with Adjustable Bandwidth
- Separate Adjustable Overfeed Safety Timers
- Rain and Splash Proof Cabinet
- 5-year Electronics Warranty
PRECISE AND RELIABLE PPM READING
The new Free Chlorine Sensor is a solid state sensor with a selective membrane that provides direct readings of Free Chlorine in water at concentrations ranging from 0.1 to 10 ppm (parts per million) or mg/l (milligrams per litter). These are true readings of Free Chlorine corresponding to the DPD #1 test.
A significant advantage of this PPM sensor is that it’s not affected by cyanuric acid (CYA) stabilizer and/or oxidizers, thereby assuring constant Free Chlorine levels at all times. Unlike other chlorine sensors on the market, this new sensor is easy to install and maintain and gives the operator precise and reliable control of Free Chlorine under the most difficult conditions. The PPM sensor is covered by a full 2-year warranty.
CH265 SPECIFICATIONS
| FREE CHLORINE CONTROL | Adjustable from 0.1 to 10.0 ppm (mg/l) or 0.01 to 3.00 (specify) |
| pH CONTROL | Adjustable from 0.0 to 14.0 |
| FREE CHLORINE SENSOR | Solid state electrode with 3 m cable |
| pH SENSOR | Glass electrode with 3 m cable |
| READOUTS | PPM (3 digits) and pH (2 digits) LEDs |
| FEED MODES | Manual, automatic, proportional |
| ADJUSTMENTS | Set-point, calibration, limits, feed rate |
| INDICATORS | LEDs for feed mode, feed status, alarms |
| 4-20 mA Output | Out-of-range limits |
| CABINET | Polystyrene 22 x 18 x 10 cm |
| ELECTRICAL | 230V or 24 VAC (specify) |
| PLUMBING | Flow Cell Assembly with Y-Strainer |
| WARRANTY | 5 years on electronic module 1 year on all other parts |
| SHIPPING | 30 x 30 x 30 cm carton, 3 kg without pumps 6 kg with 2 chemical feed pumps |
